5 Series E60 530i (M54) SAL
13 71 000

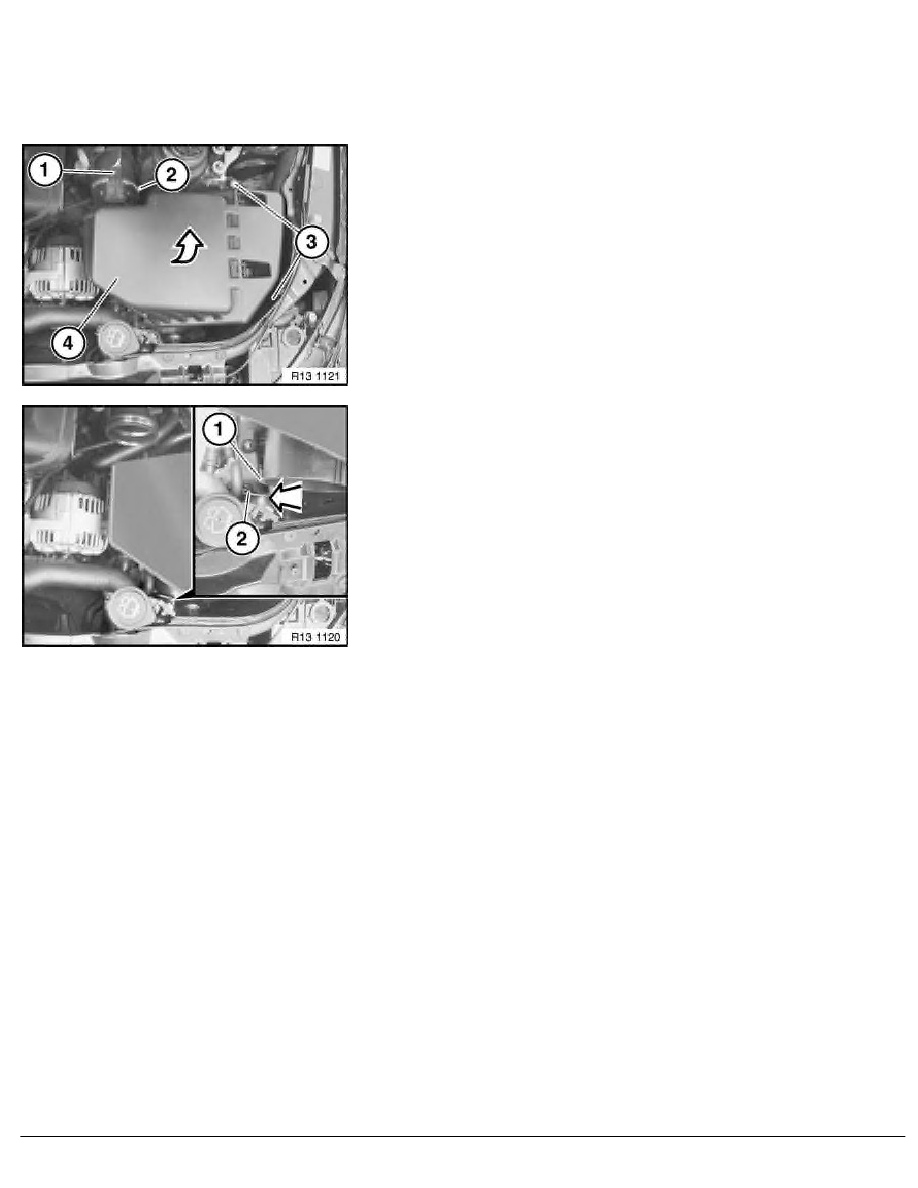

Removing and installing intake filter housing
(M54)
Switch off ignition.
Unlock plug (1) and remove.
Unfasten hose clip (2).
Release screws (3).
Remove intake filter housing (4) towards top.
Installation:
Make sure lock (1) engages correctly in groove (2).
RA Removing and installing intake filter housing (M54)
