5 Series E60 535d (M57TU) SAL
13 71 140
Replacing intake manifold (between air-mass
sensor and exhaust turbocharger) (M57TU
TOP)
Necessary preliminary tasks:
•
Switch off ignition
•
Remove upper section of intake filter housing

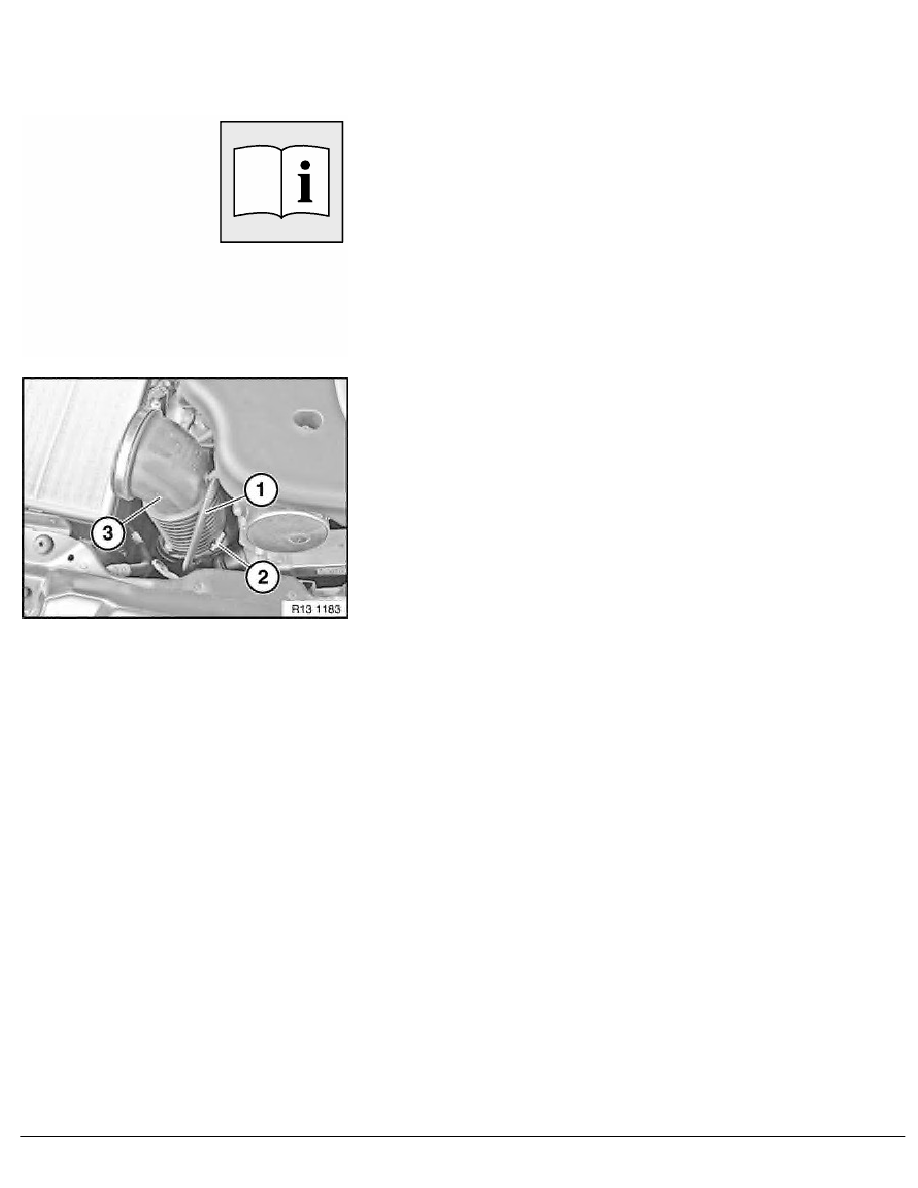

Unclip line (1).
Release clamp (2).
Remove intake manifold (3).
Installation:
Make sure intake manifold (3) is correctly seated on exhaust
turbocharger.
RA Replacing intake manifold (between air-mass sensor and exhaust turbocharger) (M5
