5 Series E60 M5 (S85) SAL
11 36 040
Removing and installing / replacing right
VANOS adjustment unit (S85)
Special tools required:
•
11 5 100
•
11 5 320
Important!
If the hexagon socket screws with washers are released by
mistake, it will be necessary to readjust the timing.
Necessary preliminary tasks:
•
Remove intake air manifold.
•
Remove right cylinder head cover
•
Remove fan cowl with electronic fan.
•
Detach oil line from VANOS adjustment unit.
•
Remove coolant hose from radiator inlet on right.
Important!
6 hexagon socket screws with washers must not be
released.
If the 6 hexagon socket screws with washers are released by
mistake, it will be necessary to readjust the timing.

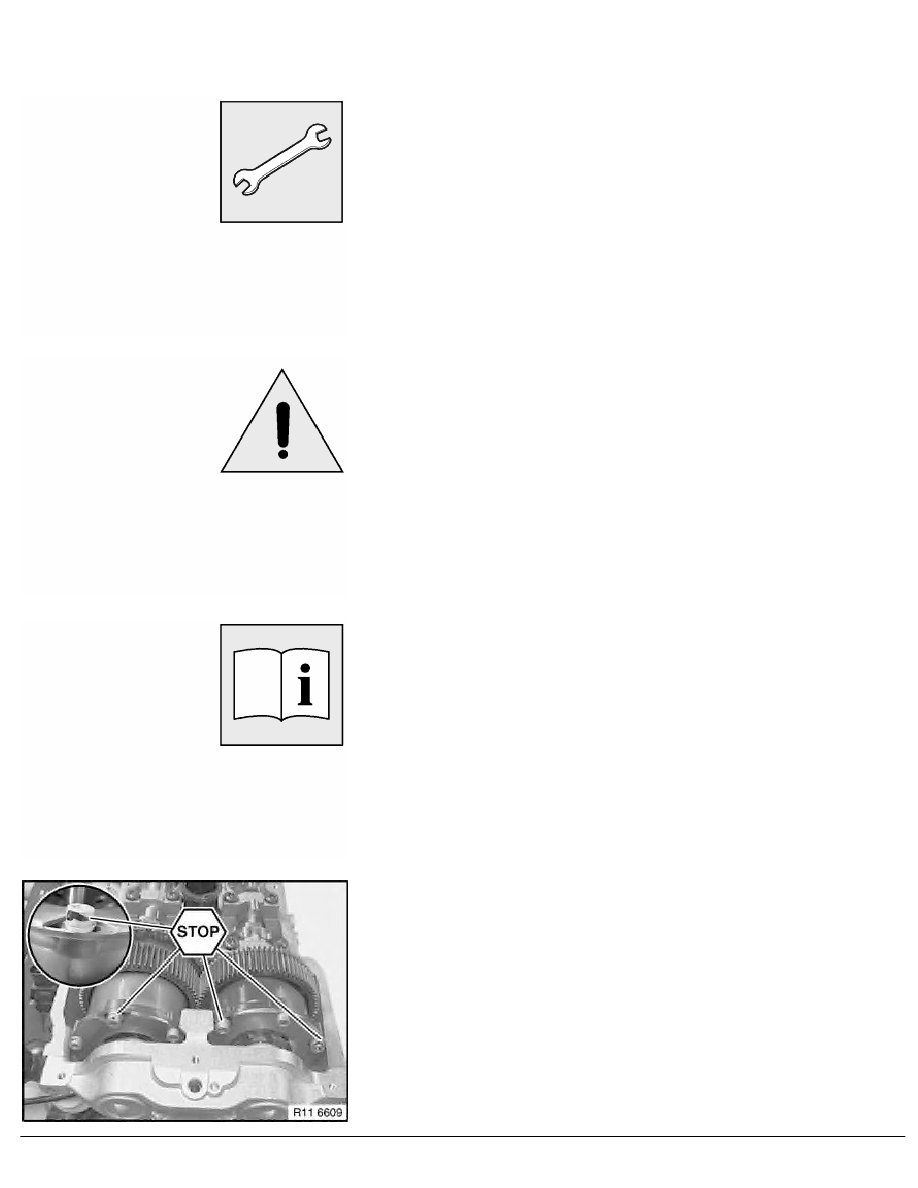

Note:
Illustration shows 6 to 10.
