5 Series E61 520d (M47T2) TOUR
22 11 001
Replacing right engine mount (M47T2)
Necessary preliminary tasks:
•
Secure engine in installation position
•
Remove reinforcement plate

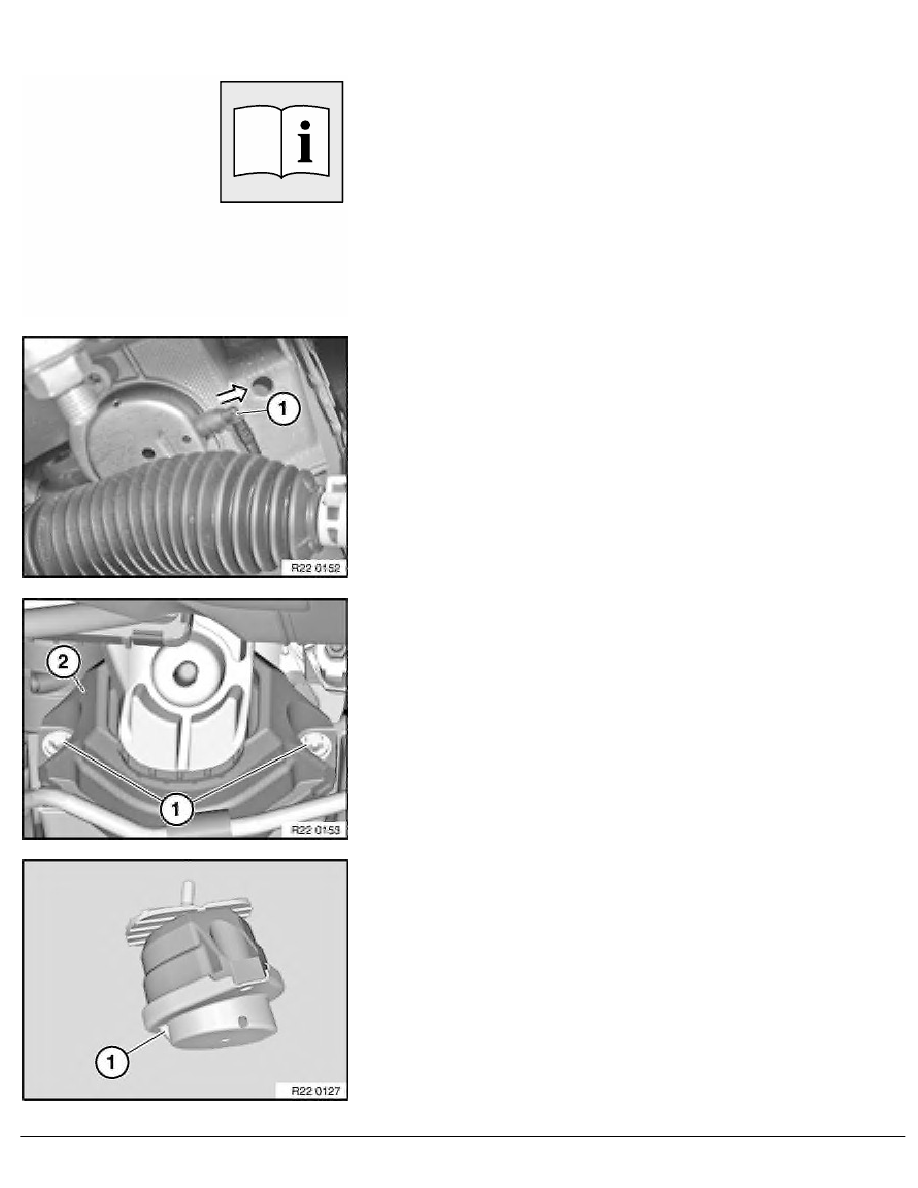

Disconnect vacuum line (1).
Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ
.
Installation:
Lug (1) of engine mount must point to middle of vehicle.
RA Replacing right engine mount (M47T2)
