5 Series E61 535d (M57T2) TOUR
67 61 007
Removing and installing/replacing drive with
gear (rear) for actuating slide/tilt sunroof
(rear)
Necessary preliminary tasks:
•
Remove both trim panels for rear roof pillar (C-pillars)
•
Remove both trim panels for rear roof pillar (D-pillars)
•
Remove both interior lights
•
Remove both rear grab handles
Note:
Remove both rear and if necessary front counter supports for
luggage compartment net.

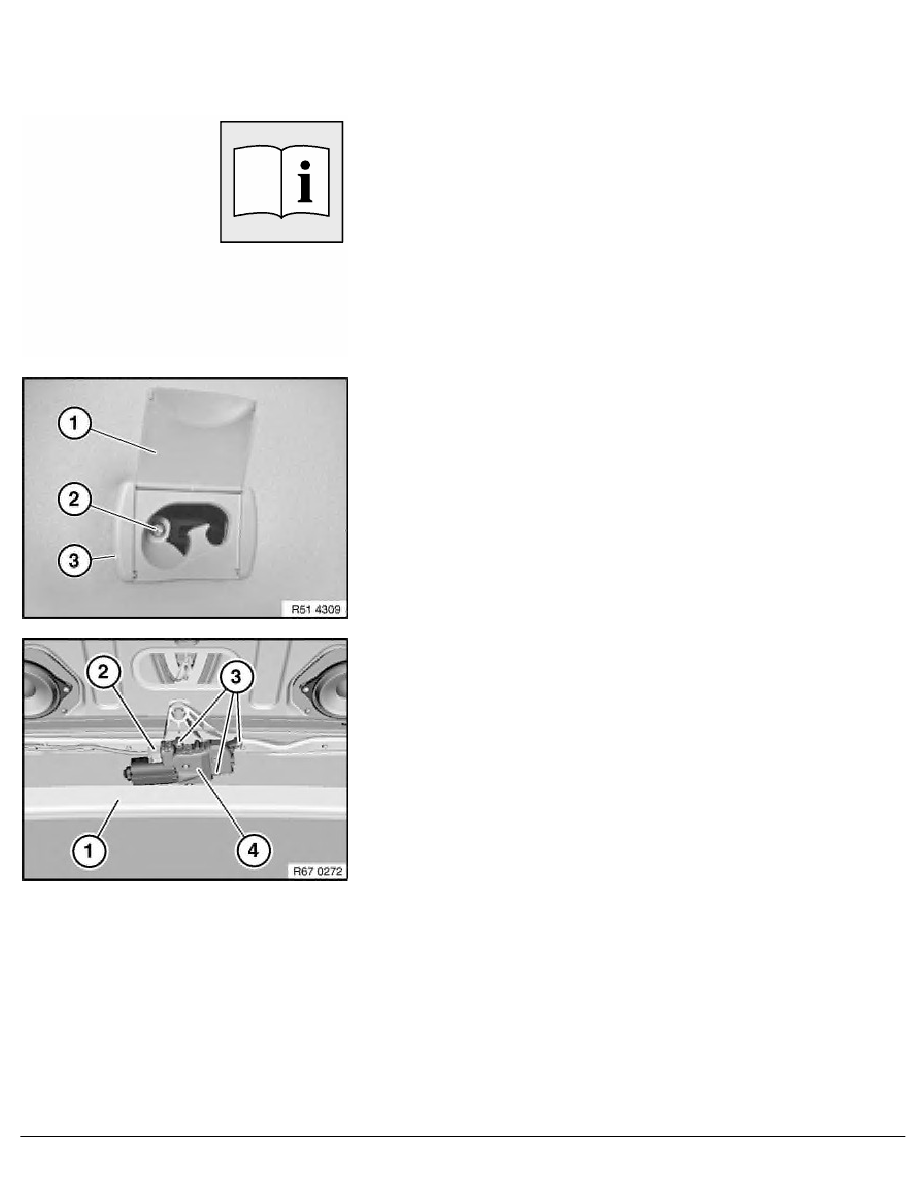

Fold up cover (1).
Release screw (2) and remove counter support for luggage
compartment net (3).
Pull off roofliner mucket in work area.
Important!
Do not under any circumstance kink roofliner (1).
Unclip and lower roofliner (1) in rear area.
Unfasten plug connection (2) and disconnect.
Note:
Secure drive with gear for actuating slide/tilt sunroof (4) against
falling out.
Release screws (3), tightening torque 54 13 1AZ
.
Note:
Screws (3) are microencapsulated.
Remove drive with gear for actuating slide/tilt sunroof (4).
