5 Series E61 535d (M57TU) TOUR
12 51 200
Replacing wiring harness section for injectors
(M57TU)
Necessary preliminary tasks:
•
Remove acoustic cover.
•
Remove right fresh air duct.
•
Remove tension strut.
•
Remove electronics box cover.

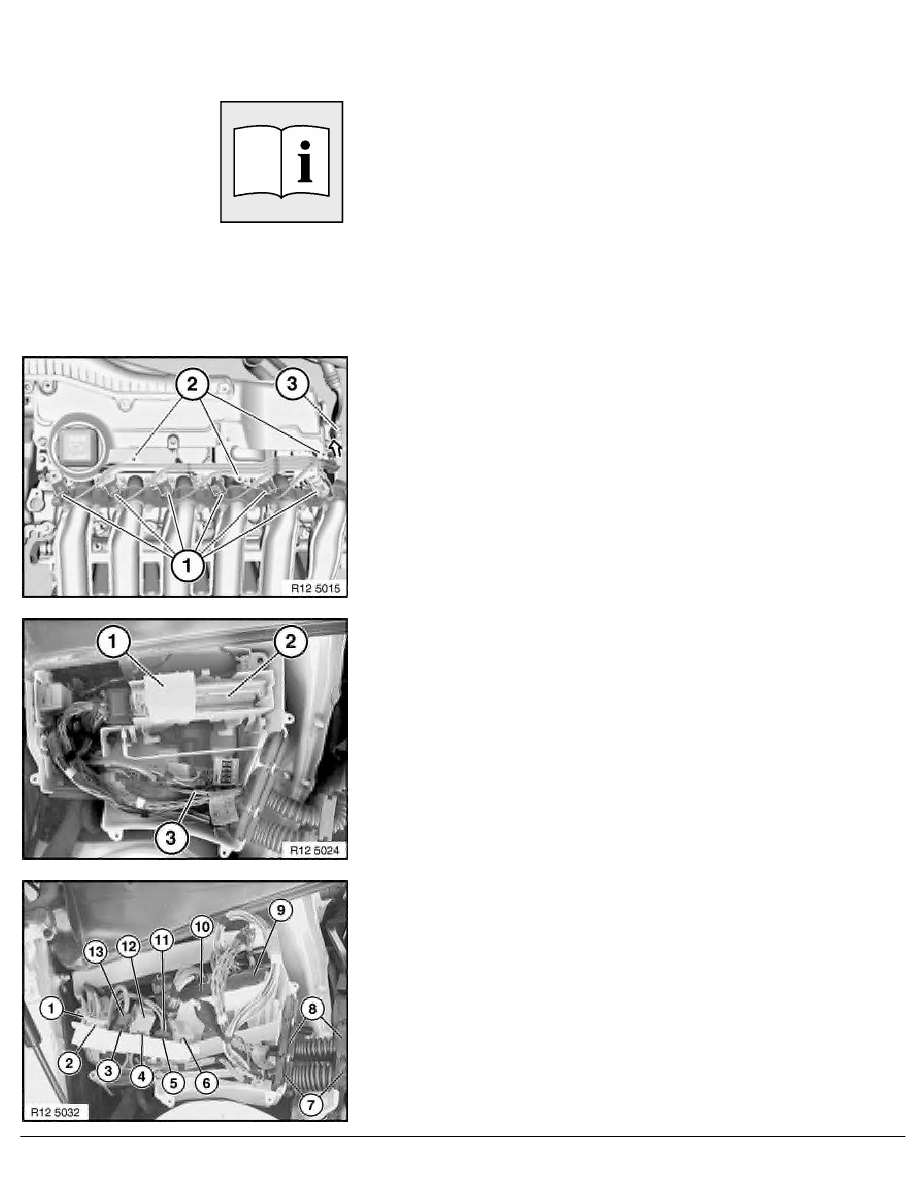

Disconnect plug (1) at injectors.
Loosen screws (2).
Remove cable duct (3) from mounting towards top.
Release retaining clip (1).
To release plug connection, position control unit (2) vertically.
Disconnect control unit plug (9).
RA Replacing wiring harness section for injectors (M57TU)
