6 Series 630i (N53) Coupe

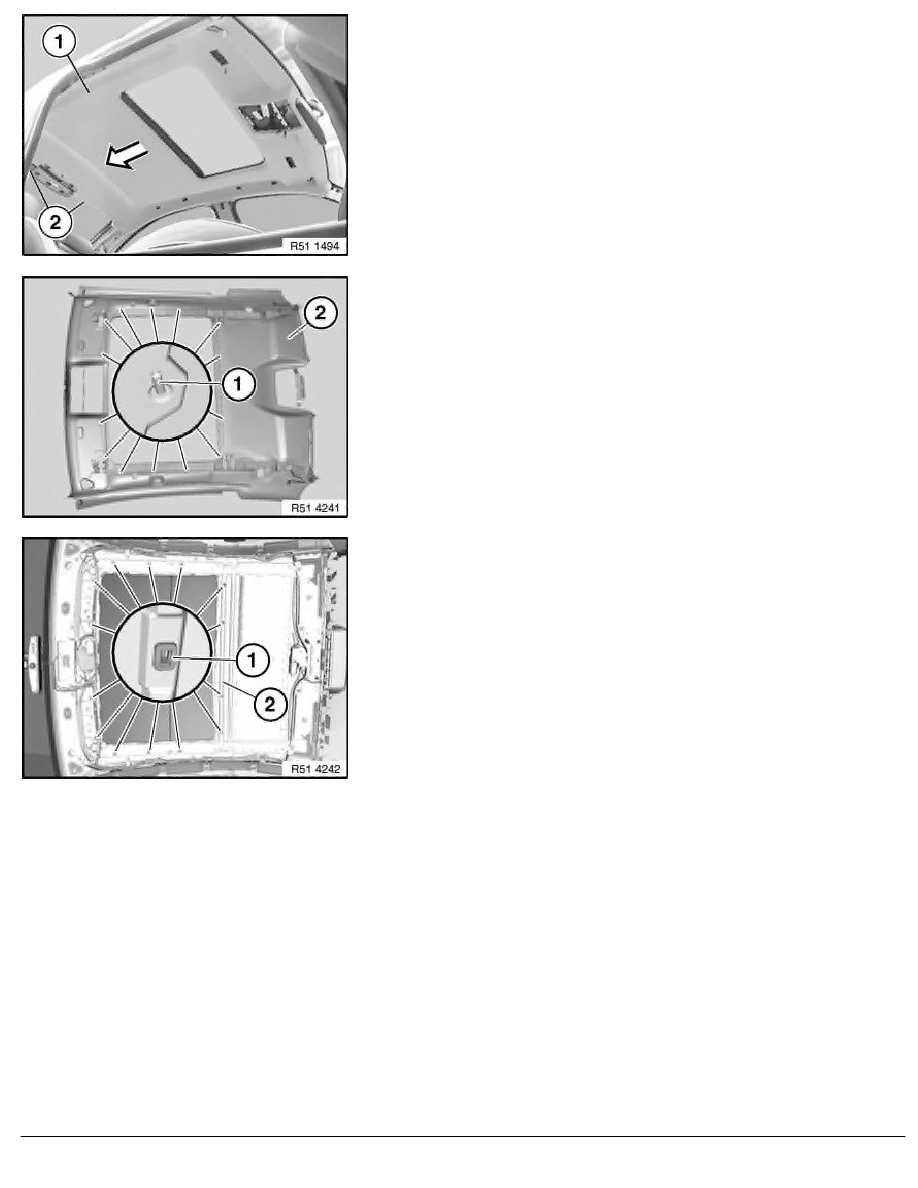

Press roofliner (1) towards rear out of metal lugs (2).
Move roofliner (1) downwards, turn carefully and remove through
door opening.
Installation:
Guides (1) on roofliner (2) must not be damaged.
Installation:
To ensure that the roofliner is held securely, replace all the insert
retainers (1) on the sunroof frame (2).
RA Removing and installing/replacing roofliner (version with glass tilt sunroof)
