6 Series 630i (N53) Coupe
65 12 050
Removing and installing/replacing left or right
central bass speaker

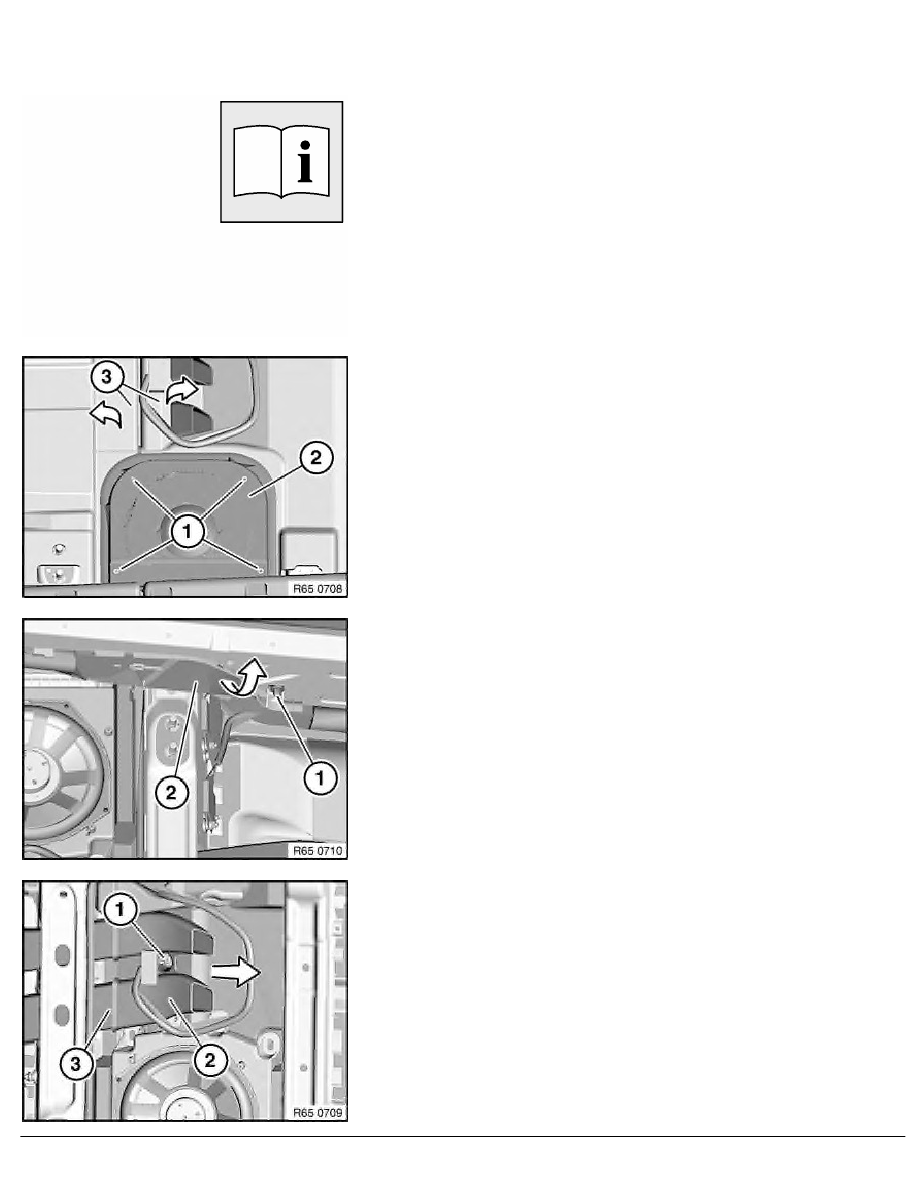

Necessary preliminary tasks:
•
Remove front seat.
•
Remove front entrance cover strip.
Release screws (1).
Remove bass speaker trim (2).
Fold back floor trims (3) in direction of arrow.
Unscrew nut (1).
Raise front entrance cable cover (2) in direction of arrow and lay
to one side slightly.
Unscrew nut (1).
Detach front heating duct for rear compartment (2) in direction of
arrow from rear heating duct for rear compartment (3).
RA Removing and installing/replacing left or right central bass speaker
