6 Series M6 (S85) Coupe
Important!

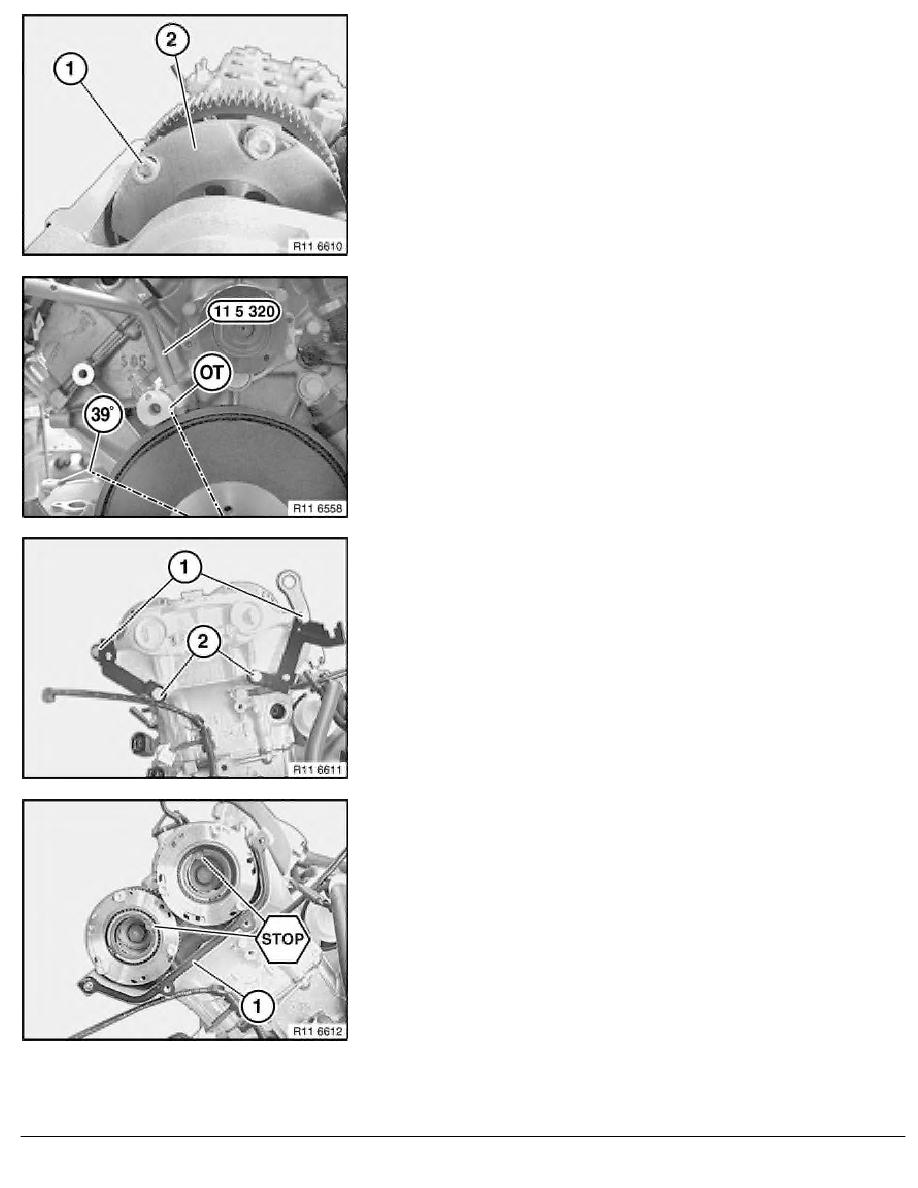

Hexagon socket screws (1) may fall into the engine
compartment after they have been released (risk of damage).
Release hexagon socket screws without washers (1).
Crank engine at central bolt until 6 hexagon socket screws of the
adjustment unit have been released.
Important!
Secure special tool 11 5 320 to vibration damper in
1st cylinder firing TDC position.
Release bolts (1).
Release screws (2).
Remove VANOS adjustment unit towards front.
Important!
Do not open Seeger circlip rings of VANOS gears.
Installation:
Replace seal (1).
RA Removing and installing / replacing right VANOS adjustment unit (S85)
