6 Series M6 (S85) Coupe
Note:
Engine installed.

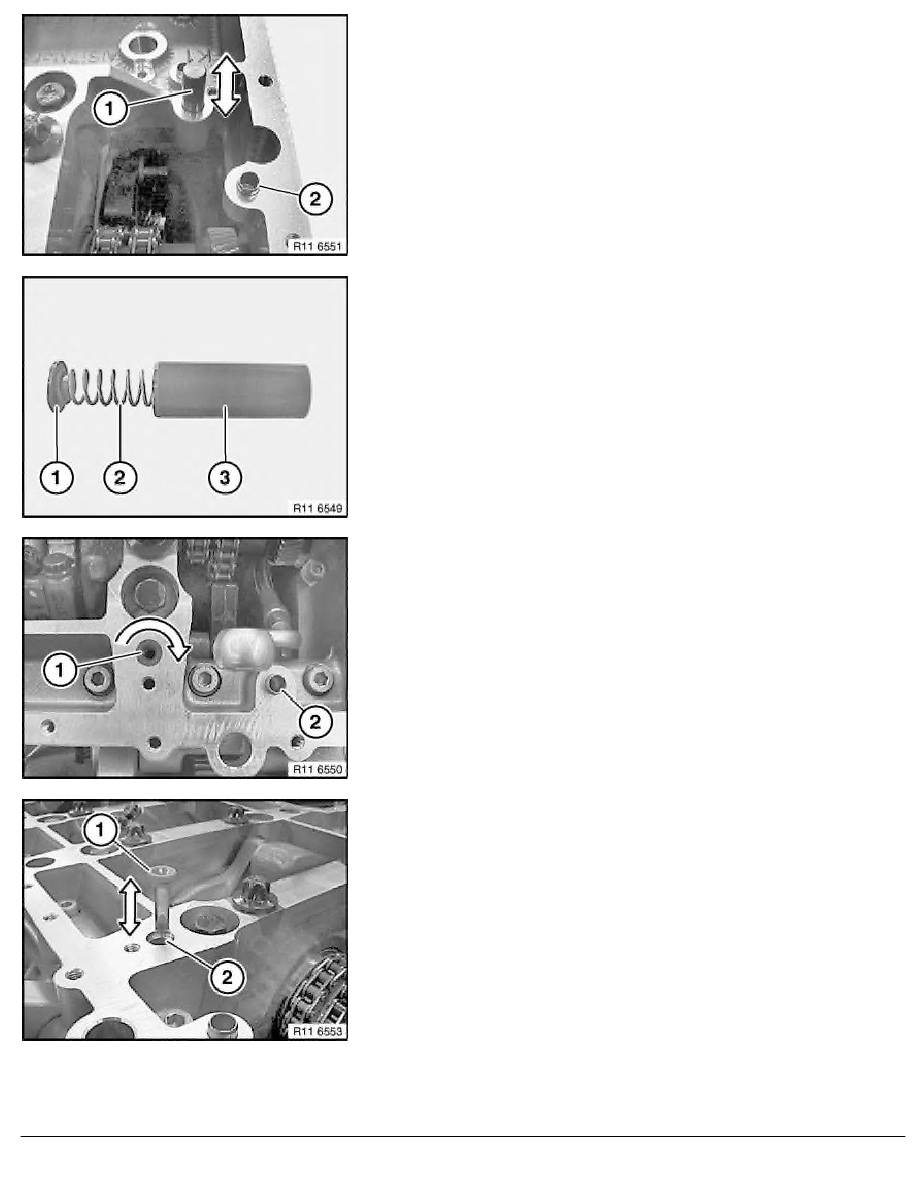

Secure piston (1) against falling out; remove if necessary.
Check adapter sleeve (2) for damage and secure seating;
replace if necessary.
Installation:
Arrangement, chain tensioner, oil pump.
1.
Base valve
2.
Spring
3.
Piston
Installation:
Replace fine-mesh strainer.
Remove fine-mesh strainer (1) with screwdriver in direction of
arrow.
Check adapter sleeve (2) for damage and secure seating;
replace if necessary.
Remove and fine-mesh strainer (1) in direction of arrow.
Clean sealing surface (2).
Installation:
Replace fine-mesh strainer.
RA Removing and installing / replacing VANOS high-pressure pump (S85)
