6 Series M6 (S85) Coupe

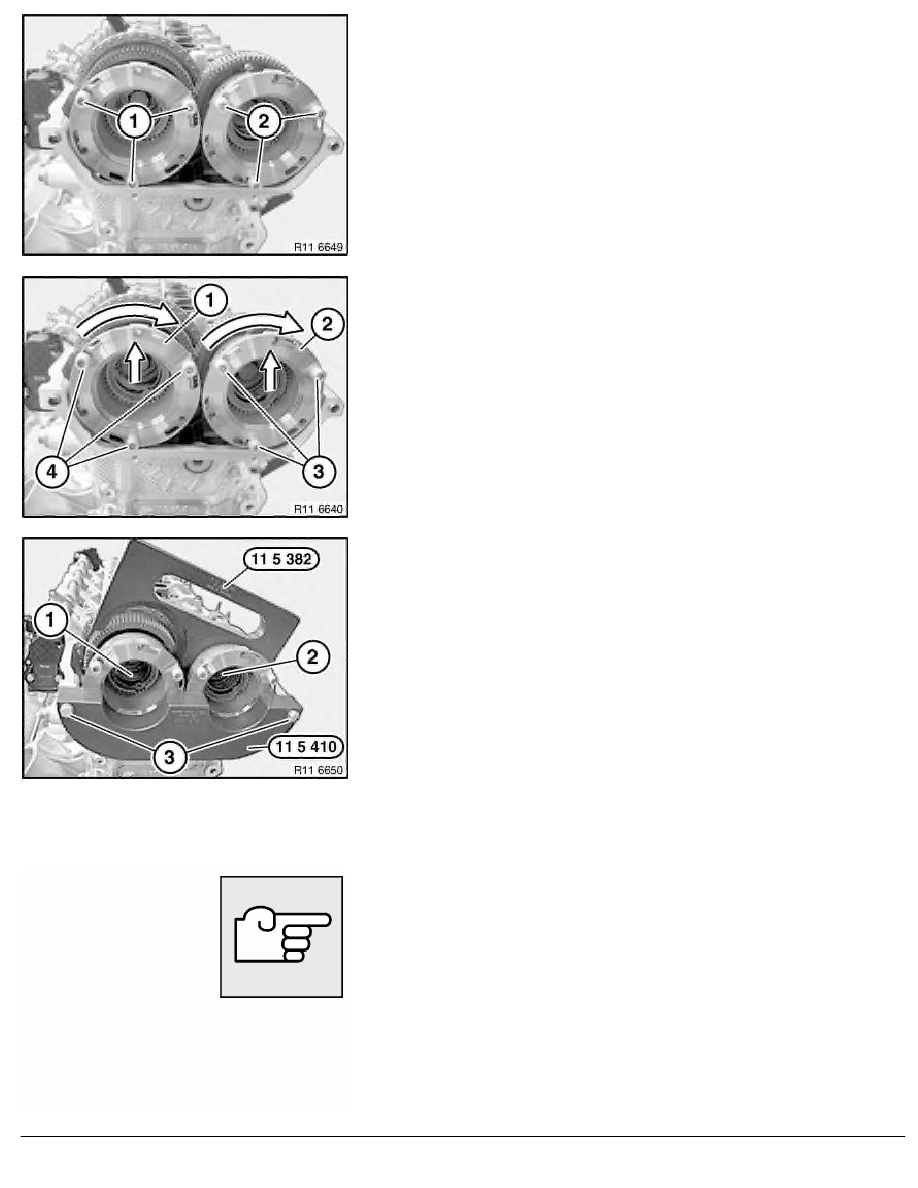

Release hexagon socket screws with washers (1 and 2).
Installation:
If reusing the VANOS gear, replace hexagon socket screws with
washers (1 and 2).
Important!
Release central bolt only when inner sleeves (1 and 2) with
elongated holes are at left stop.
Pull VANOS gear with outer sleeve forwards until inner
sleeves (1 and 2) with elongated holes are at left stop.
Join hexagon socket screws with washers (3 and 4) to 10 Nm .
Attach special tool 11 5 382 .
Fit special tool 11 5 410 with bolts (3).
Important!
Release central bolt (2) with special tools 11 5 410 and
11 5 382 only.
Note:
•
If the special tool 11 5 410 cannot be fitted due to the
hexagon socket screws being unfavourably positioned, it is
necessary to remove the two or if necessary four hexagon
socket screws.
Release central bolts (2).
Remove special tool 11 5 410 .
Note:
•
If the central bolt is released, the removed hexagon socket
screws are reinstalled with a joining torque of 10 Nm.
Installation:
Replace central bolts (1 and 2).
RA Removing and installing / replacing left exhaust VANOS gear (S85)
