6 Series M6 (S85) Coupe

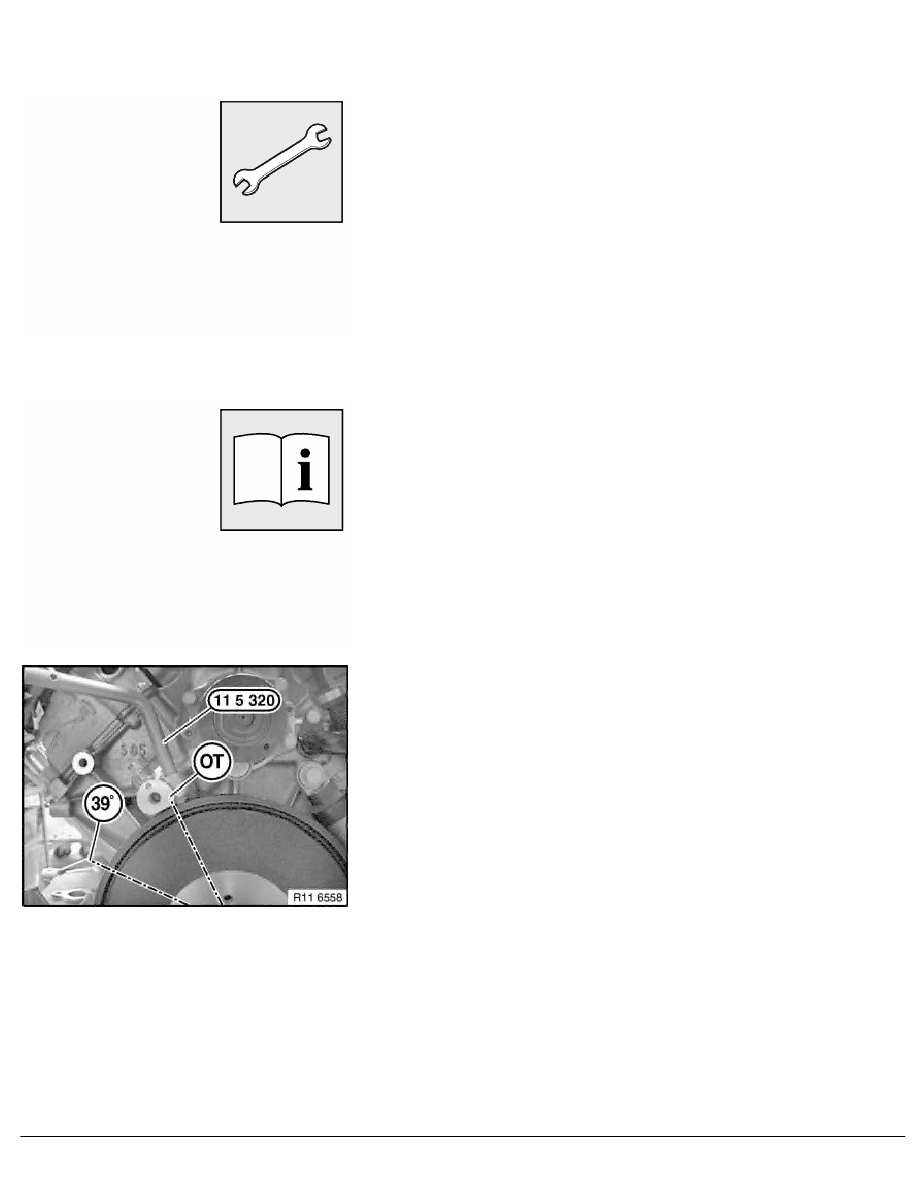

Position of inlet camshaft, cylinders 1-5.
Designation (E1) on dihedron points upwards.
Rotate exhaust camshaft with open-end wrench (1) at hexagon
head in direction of arrow until special tool A 11 5 301 can be
attached.
Designation (A1) on dihedron points upwards.
Note:
Exhaust VANOS gear (2) adjusted in direction of
arrow (advance).
Disconnect inlet and exhaust camshafts.
Attach special tool A 11 5 301 .
Attach special tool E 11 5 301 and secure with bolts (2).
Important!
Screw in bolts (2) without fail, risk of damage to camshafts.
Important!
Removal/installation is not possible without hexagon socket
screw (2).
Hexagon socket screw (2) with washer must not be longer
than 18 mm.
Gearwheels (1 and 3) of exhaust VANOS gear are tensioned
with a spring.
Insert M8x18 hexagon socket screw (2) into exhaust VANOS
gear.
RA Removing and installing / replacing right inlet VANOS gear (S85)
