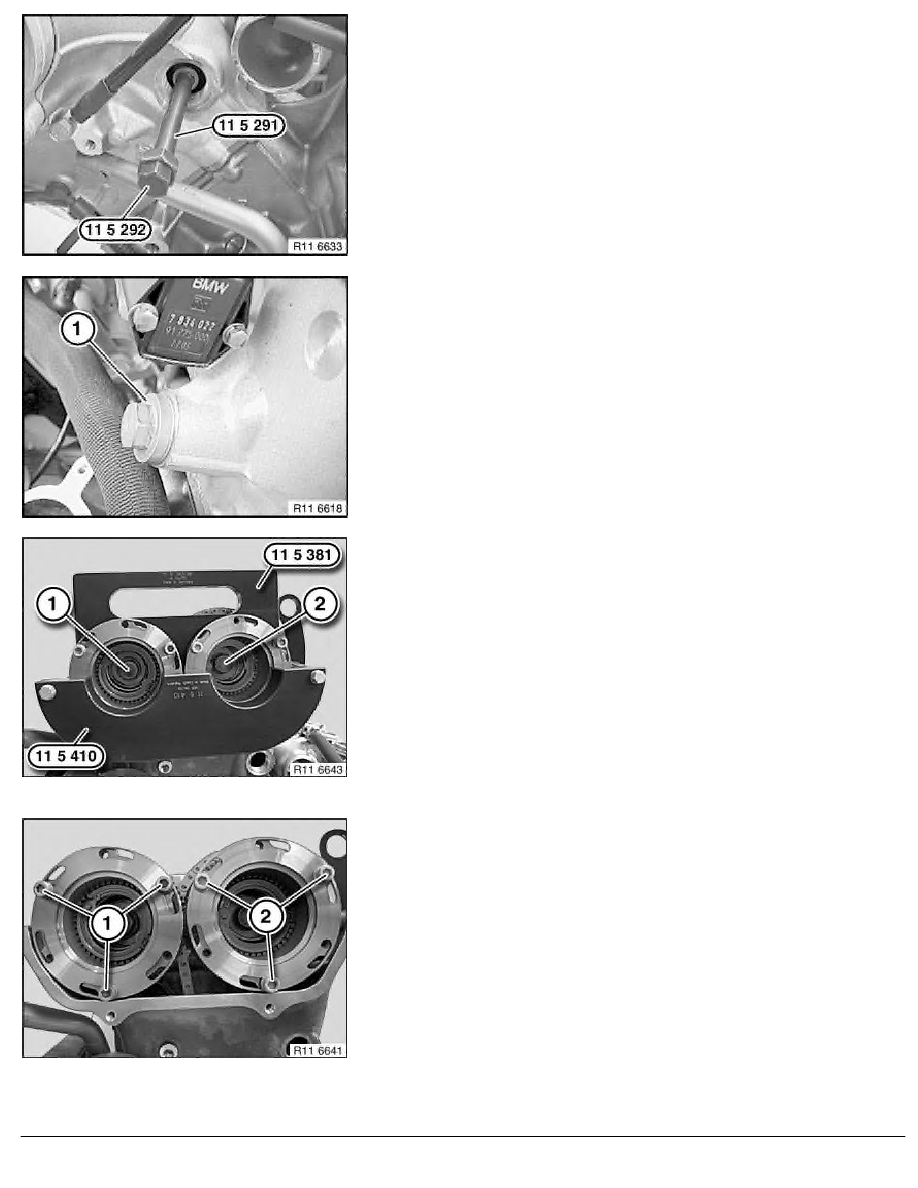

Insert bearing pin with special tool 11 5 291 into sliding rail.
Tightening torque: 11 31 2AZ
.
Remove special tools 11 5 291 and 11 5 292 .
Install screw plug for chain rail on right cylinder head.
Installation:
Replace sealing ring.
Tightening torque: 11 12 9AZ
.
Insert chain tensioner with sealing ring.
Tightening torque: 11 31 1AZ
.
Note:
Illustration shows cyl. 6-10.
If necessary, remove transportation lock from VANOS gear.
Insert special tool 11 5 381 between outer sleeve and
gearwheel.
Fit special tool 11 5 410 .
Remove M8x18 hexagon socket screw or special tool 11 5 370 .
Important!
Secure central bolts (1 and 2) with special tools 11 5 381
and 11 5 410 only.
Tighten central bolts (1 and 2).
Tightening torque: 11 36 1AZ
.
Remove special tools 11 5 381 and 11 5 410 .
Release hexagon socket screws with washers (1 and 2) through
90
°
.
