6 Series M6 (S85) Coupe

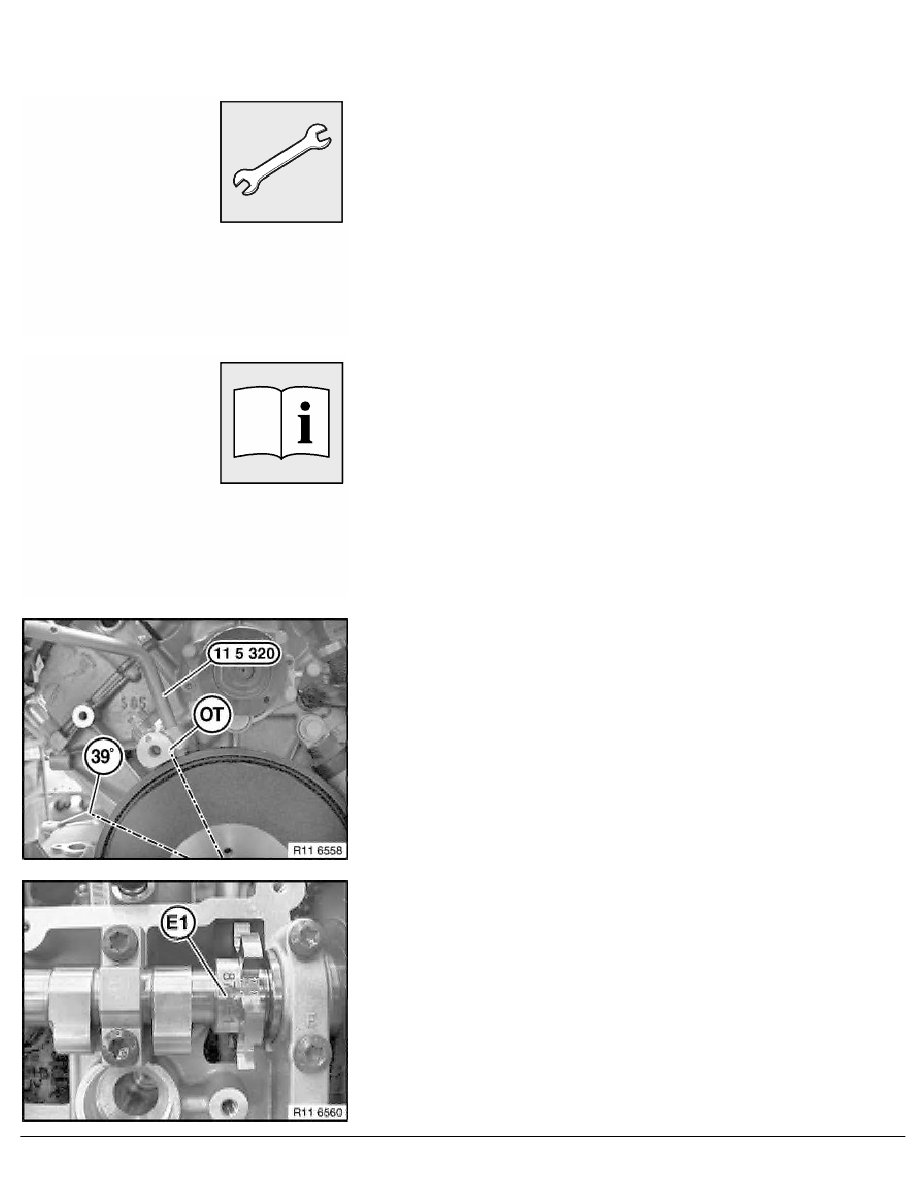

Insert special tool 11 5 381 between outer sleeve and
gearwheel.
Fit special tool 11 5 410 .
Important!
Secure and release central bolt (1) with special tools
11 5 381 and 11 5 410 only.
Risk of damage to VANOS gear.
Tighten central bolt (1).
Tightening torque: 11 36 1AZ
.
Remove special tools 11 5 410 and 11 5 381 .
Release hexagon socket screws with washers (1 and 2) through
90
°
.
Installation:
Both thrust bearing plates (1) on the VANOS adjustment unit can
be rotated.
Both thrust bearing plates (1) must be retracted.
Clean sealing faces (2).
Replace seal.
Important!
Risk of mixing up
Installation:
VANOS adjustment units are marked to avoid being mixed up.
The lettering EIN (1) must point to the inlet camshaft.
Cylinder assignment (2), cyl. 1-5 or 6-10.
RA Removing and installing / replacing right exhaust VANOS gear (S85)
