6 Series M6 (S85) Coupe
Tighten down hexagon socket screws with and without washers
to 10 Nm .
Installation:
Mark all screws which are already tightened down with a coloured
dot.
Important!
Remove all special tools - risk of damage.

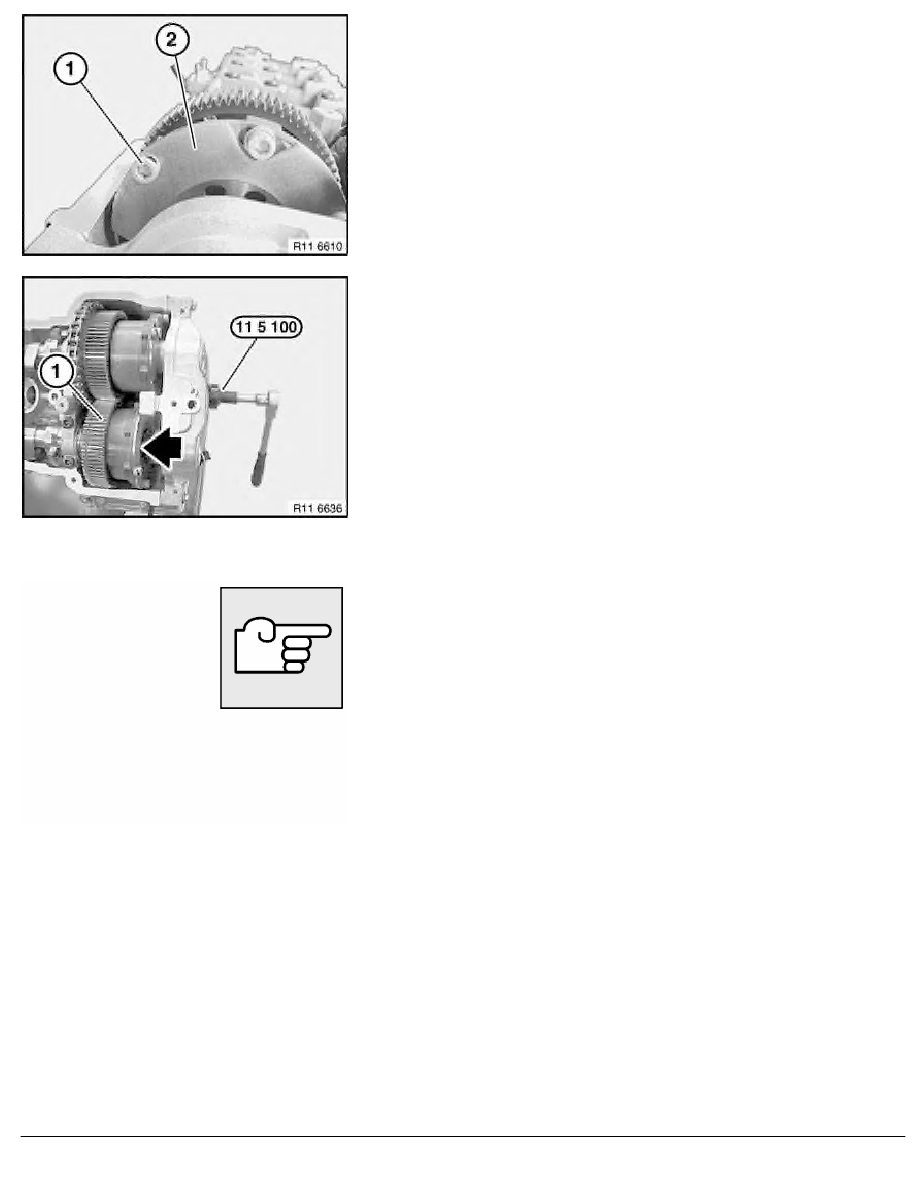

Continue cranking engine at hexagon head or with special tool
11 5 100 120
°°°°
camshaft until further hexagon sockets screws
can be inserted on the VANOS gear and tighten to 10 Nm .
Note:
First both the inlet camshafts are moved when the engine is
cranked.
Both exhaust VANOS camshafts are moved in the direction of the
arrow (retard stop).
Illustration shows cyl. 1 to 5.
Check timing.
Assemble engine.
