6 Series M6 (S85) Coupe
11 42 095
Removing and installing / sealing or replacing
connecting flange (S85)
Important!
It is essential to adhere to the exact filling capacities specified.
Overfilling the engine with engine oil will result in engine
damage.
Recycling:
Catch and dispose of emerging engine oil with suitable equipment.
Note national regulations.
Necessary preliminary tasks:
•
Remove fan cowl with electronic fan.
•
Remove front underbody protection.
•
Remove tensioning device for A/C compressor.
•
Disconnect pressure line (feed).
•
Remove engine oil sump.
•
Remove engine oil pump.

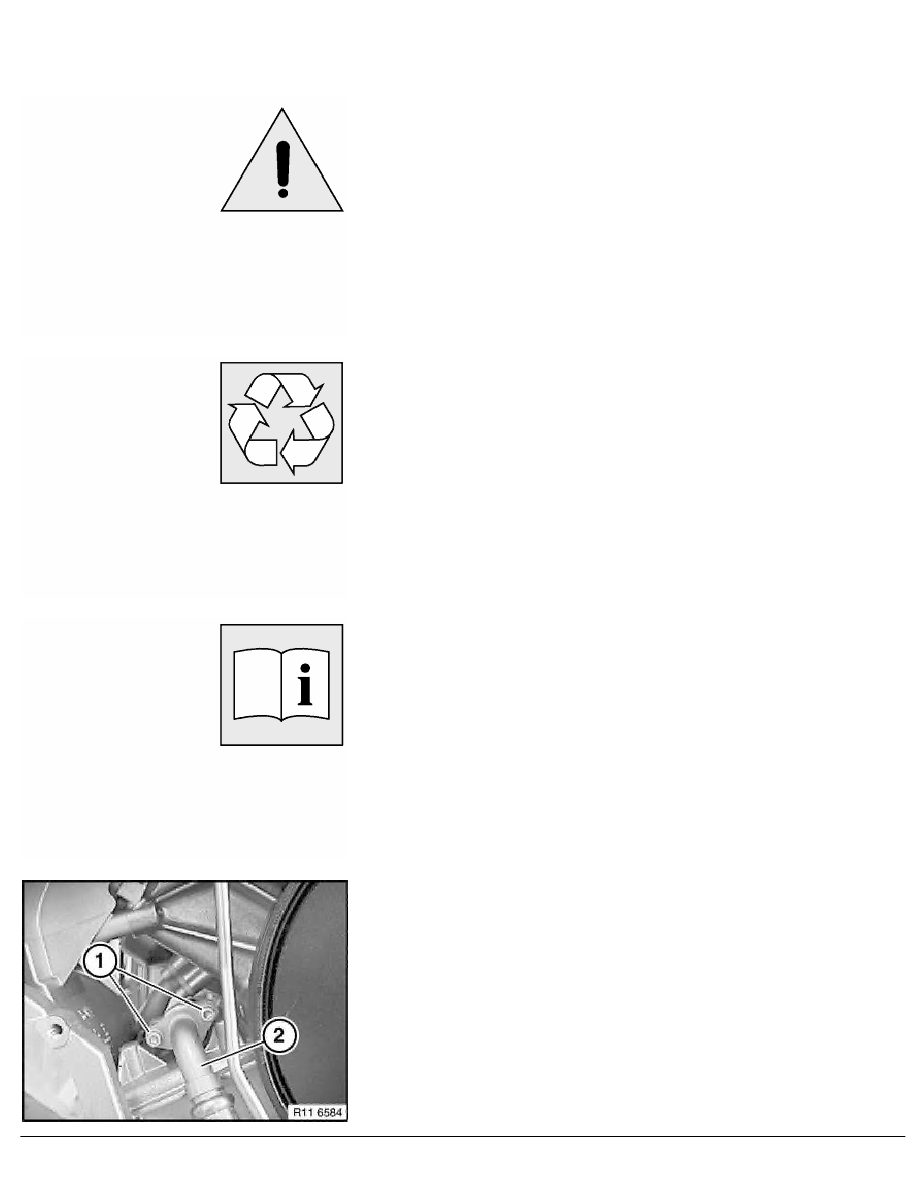

Release screws (1).
Detach pressure line (2).
Installation:
Replace O-ring.
RA Removing and installing / sealing or replacing connecting flange (S85)
BMW AG - TIS
19.01.2013 13:28
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
