6 Series M6 (S85) Coupe
11 53 000
Removing and installing/replacing coolant
thermostat (S85)
Necessary preliminary tasks:
•
Remove intake air manifold.
•
Drain coolant.

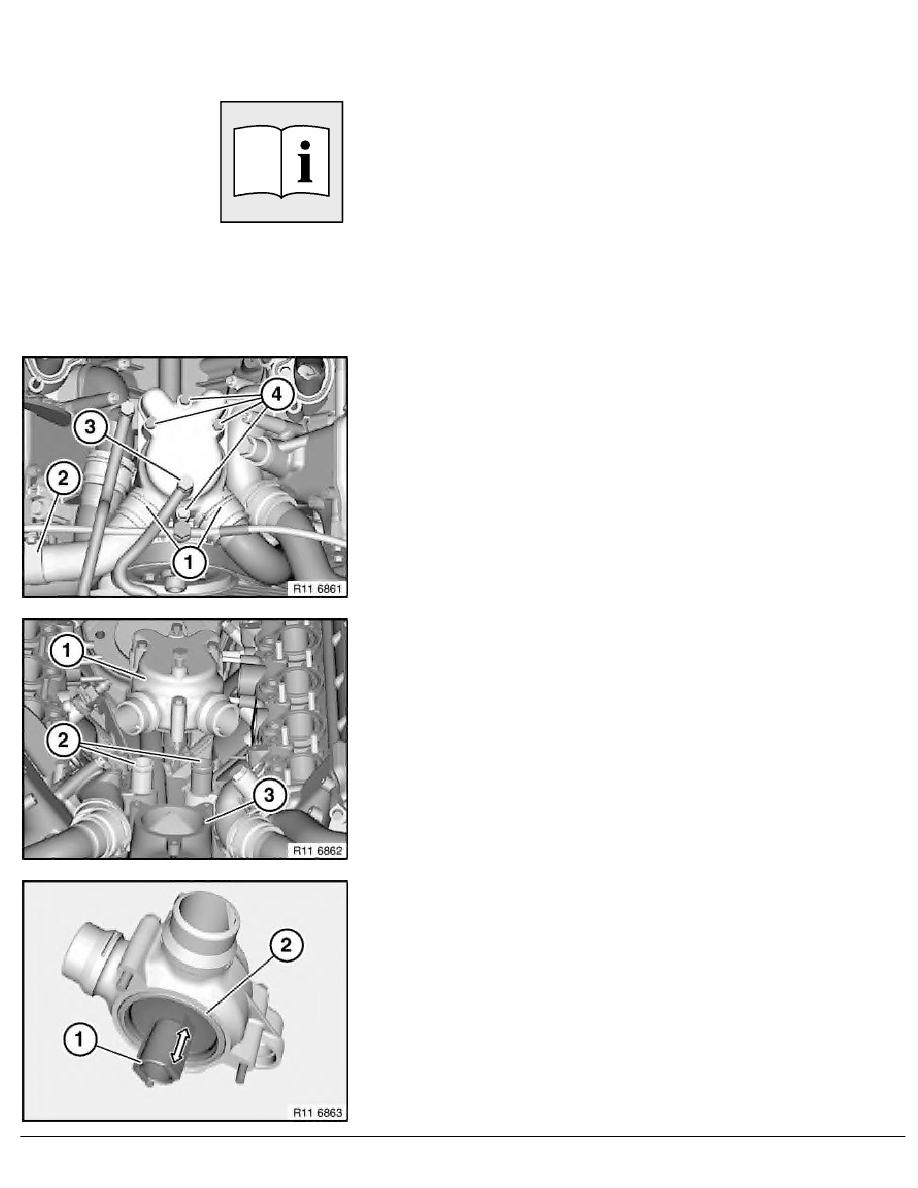

Release bolt on hose bracket (2).
Unlock and detach water hoses (1).
Unfasten banjo bolt (3).
Installation:
Replace sealing rings.
Release screws (4).
Remove thermostat housing with thermostat in upward direction.
Remove connecting pipes (2).
Installation:
Replace all O-rings on connecting pipes (2).
Clean sealing surface (3).
Remove thermostat (1) in direction of arrow.
Check rubber section (2) for damage.
RA Removing and installing/replacing coolant thermostat (S85)
