6 Series M6 (S85) Coupe
12 13 512
Replacing all ignition coils (S85)
Necessary preliminary tasks:
•
Read out fault memory of DME control unit
•
Switch off ignition
•
Remove left and right intake filter housing upper sections
•
Release coolant expansion tank and place to one side
•
Remove ignition coil cover on left and right

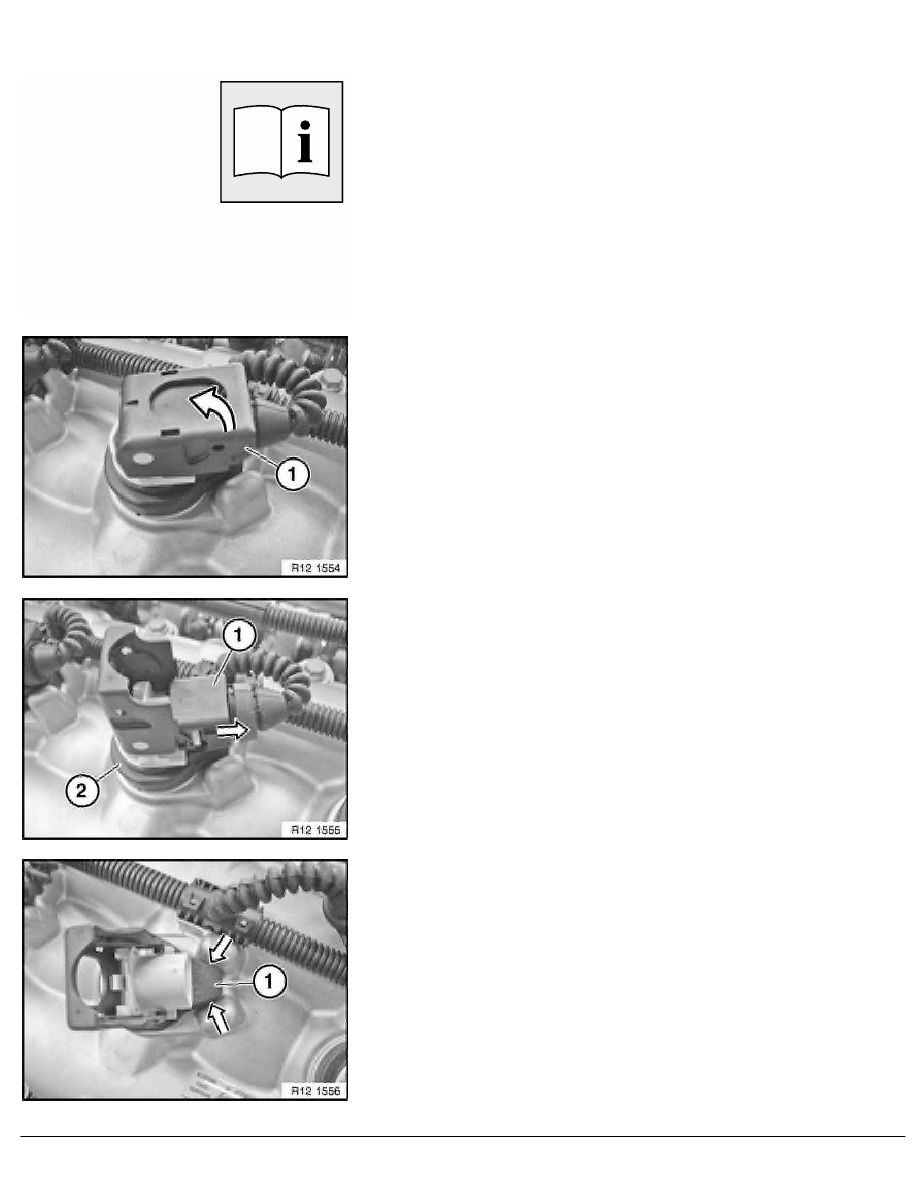

Unlock plug fastener (1) of ignition coil.
Pull off plug (1).
Pull ignition coil (2) up and out.
This procedure is applicable to all ignition coils.
Installation:
Insert rubber seal on ignition coils (1) between guides.
RA Replacing all ignition coils (S85)
