6 Series M6 (S85) Coupe
22 11 001
Replacing right engine mount (S85)
Necessary preliminary tasks:
•
Secure engine in installation position
•
Remove both front wheels
•
Lower front axle carrier
Observe safety instructions on raising the vehicle.

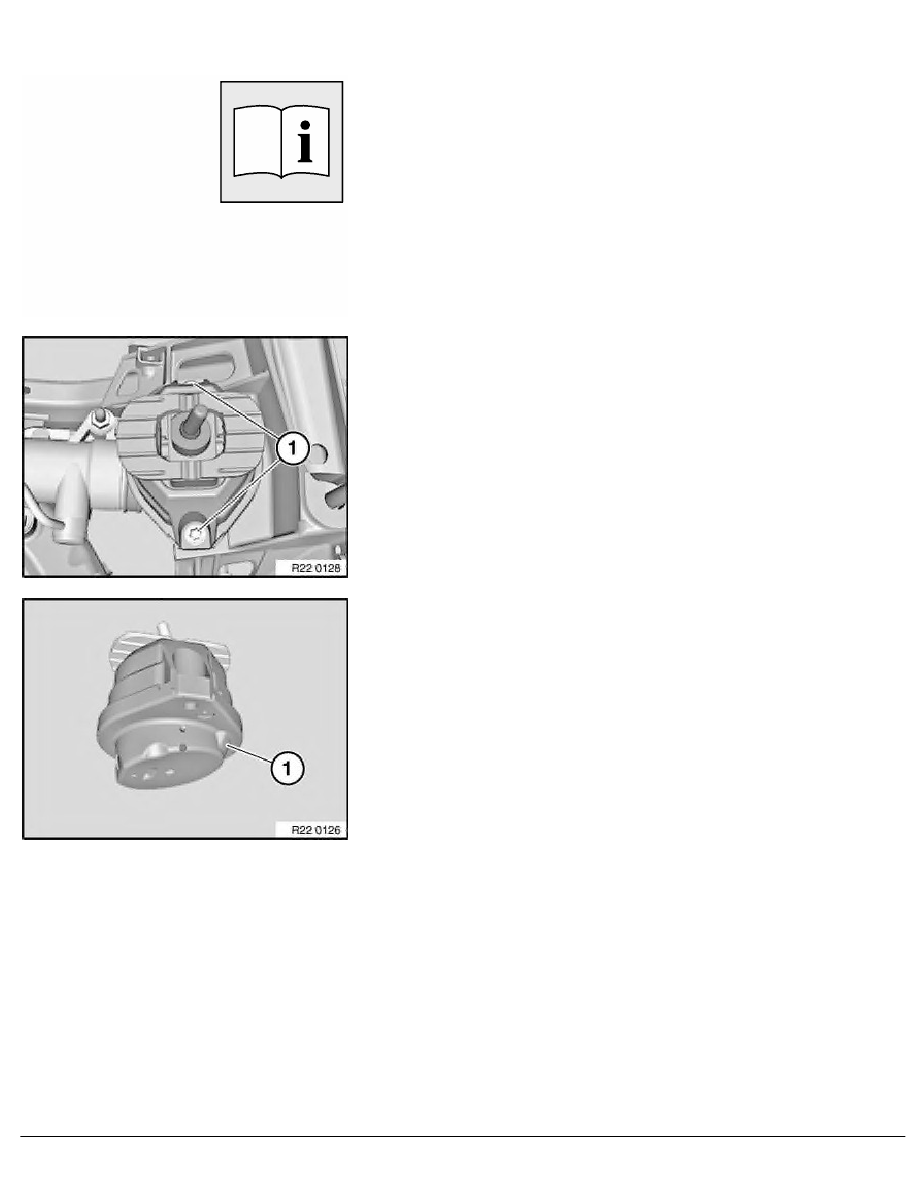

Release screws (1).
Remove engine mount.
Tightening torque 22 11 1AZ
.
Installation:
Replace screws.
Installation:
Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
-
Even component number
Left engine mount
-
Odd component number
RA Replacing right engine mount (S85)
