6 Series M6 (S85) Coupe

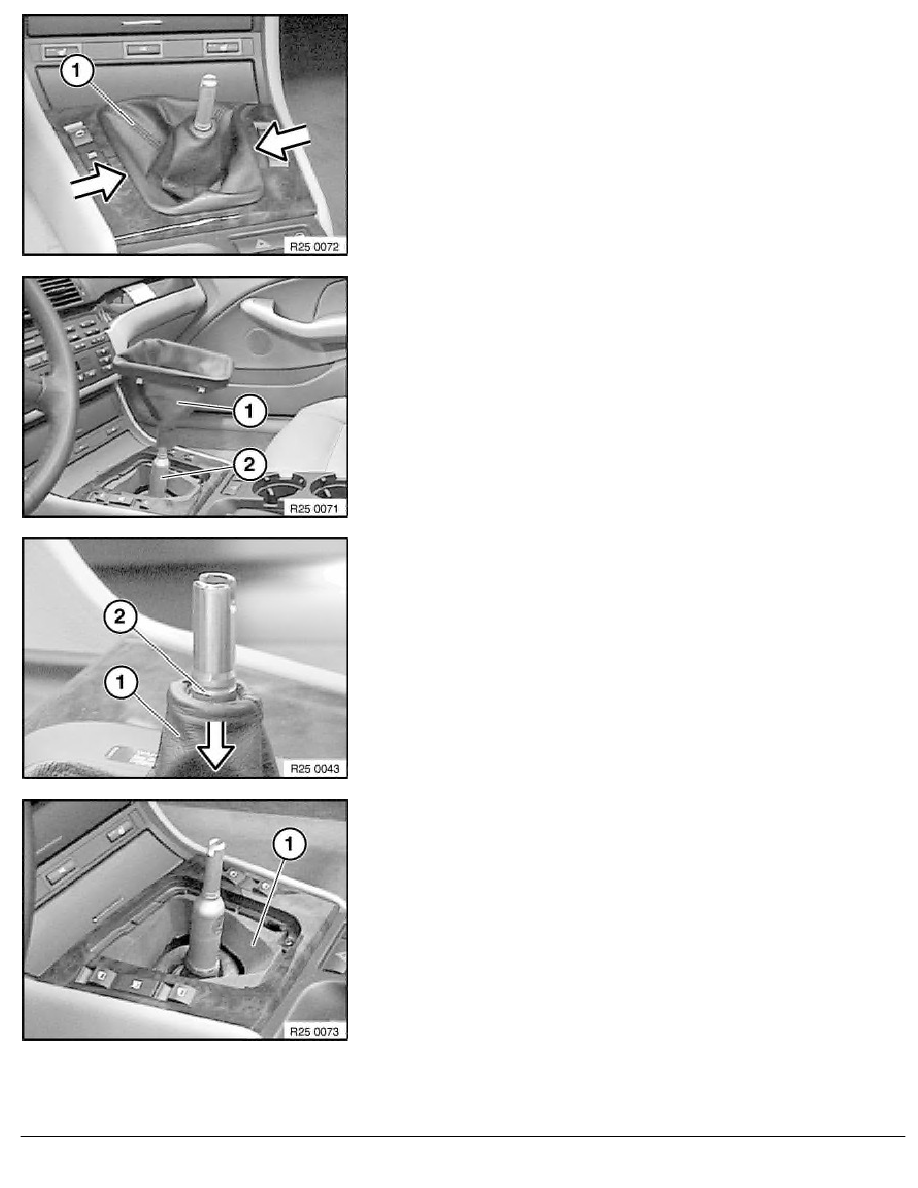

Press installation frame of rubber gaiter (1) together a little and
remove rubber gaiter (1) from centre console.
Installation:
Feed gaiter (1) downwards and fit on shift lever (2).
Pull rubber gaiter (1) over selector lever and insert in centre
console.
Installation:
Push rubber gaiter (1) down until groove (2) is fully exposed.
If necessary, remove sound insulation (1).
RA Removing and installing shift lever
