6 Series M6 (S85) Coupe
51 12 156
Removing and installing rear bumper trim
(M6)
Necessary preliminary tasks:
•
Partially remove luggage compartment wheel arch trim on left
.
•
If necessary, remove number/license plate
Note:
The operation is described on the left side; proceed in the same
way for the right side.

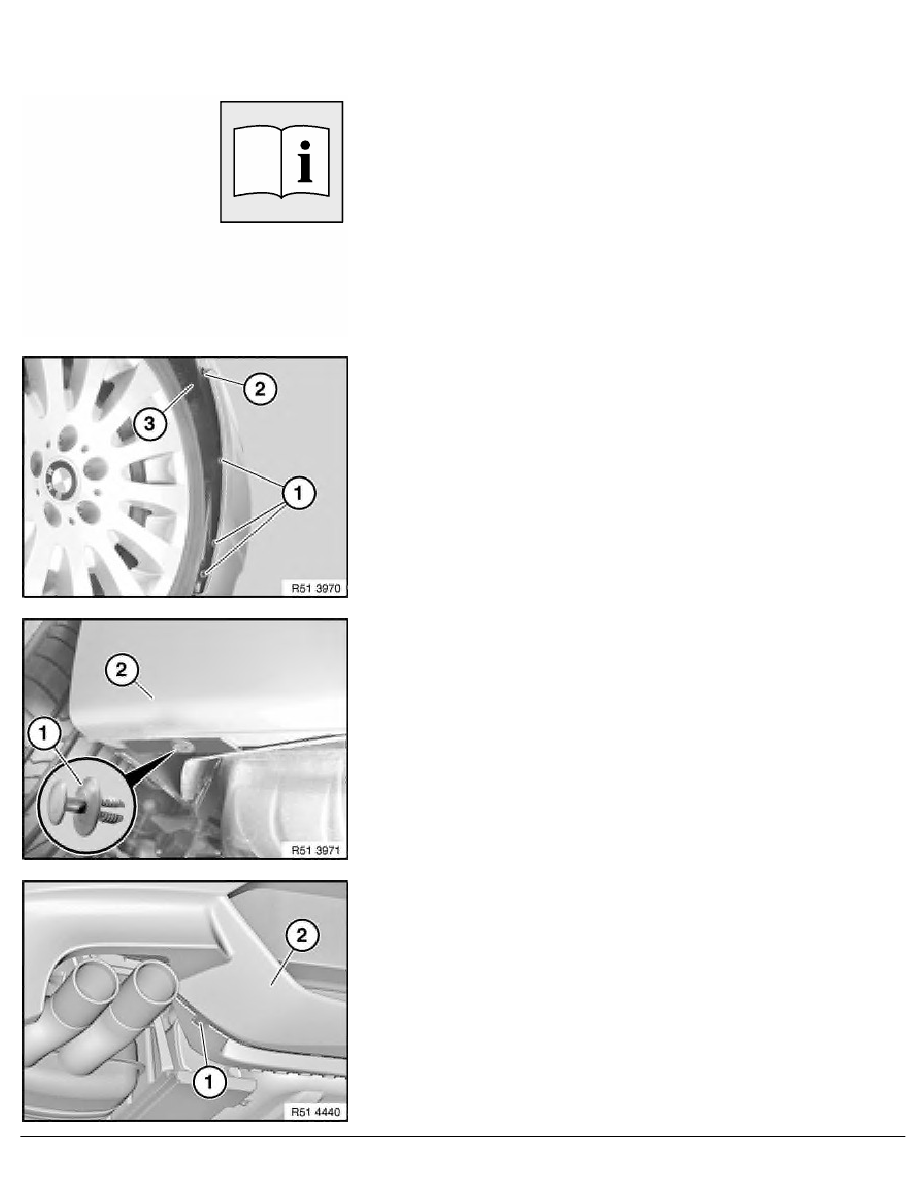

Release short and long screws (1) and (2) on wheel arch
cover (3).
Release expander rivet (1) on bumper trim (2).
Release screw (1) on bumper trim (2).
RA Removing and installing rear bumper trim (M6)
