6 Series M6 (S85) Coupe
51 16 ...

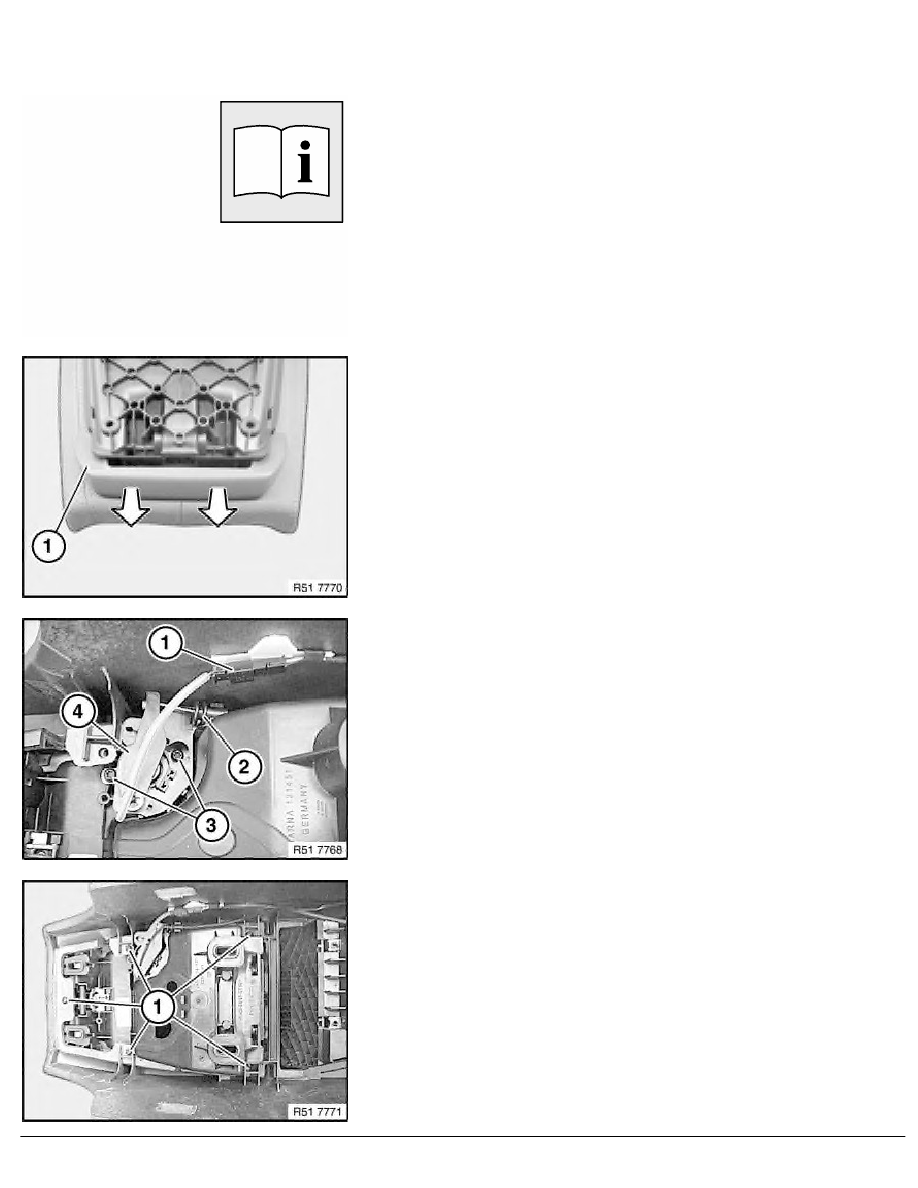

Removing and installing/replacing centre
armrest carrier
Necessary preliminary tasks:
•
Remove storage compartment
Detach hinge cover (1) in direction of arrow.
Disconnect connector (1).
Disconnect Bowden cable (2).
Release screws (3) and remove lock mechanism (4).
Release screws (1).
RA Removing and installing/replacing centre armrest carrier
