6 Series M6 (S85) Coupe
Installation:

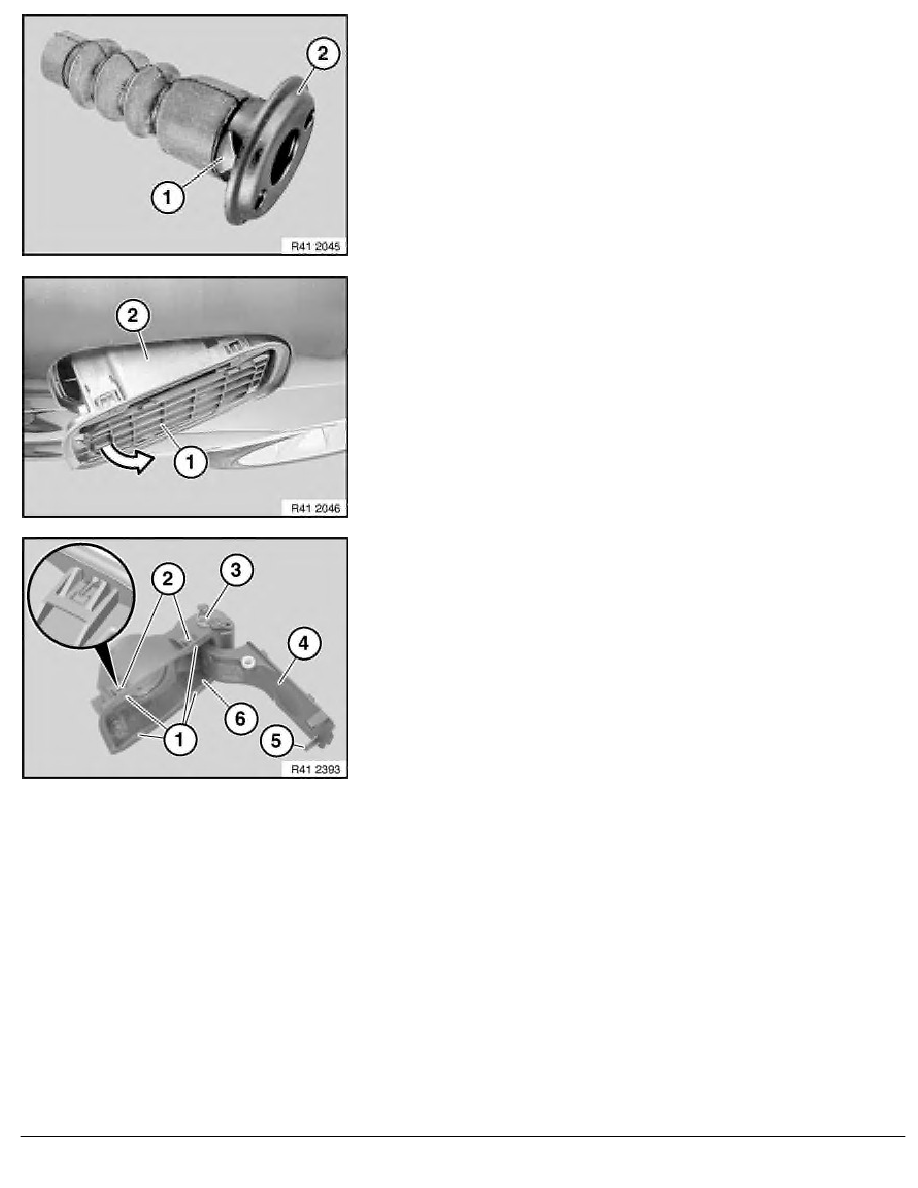

Locks (1) on left/right of cover (2) must not be damaged.
Close flap (1).
Twist cover bowl (2) in direction of arrow out of side panel and
remove.
Installation:
Following parts on cover bowl (6) must not be damaged or
missing:
1
Rubber pad
2
Catches, top/bottom
3
Spring
4
Catch
5
Guide
RA Replacing cover bowl
