6 Series M6 (S85) Coupe
64 11 875
Removing and installing/replacing servodrive
for defrosting flap
Necessary preliminary tasks:
•
Remove trim panel for pedal assembly.
•
Remove air distributor in footwell and heating duct in rear
compartment on left.

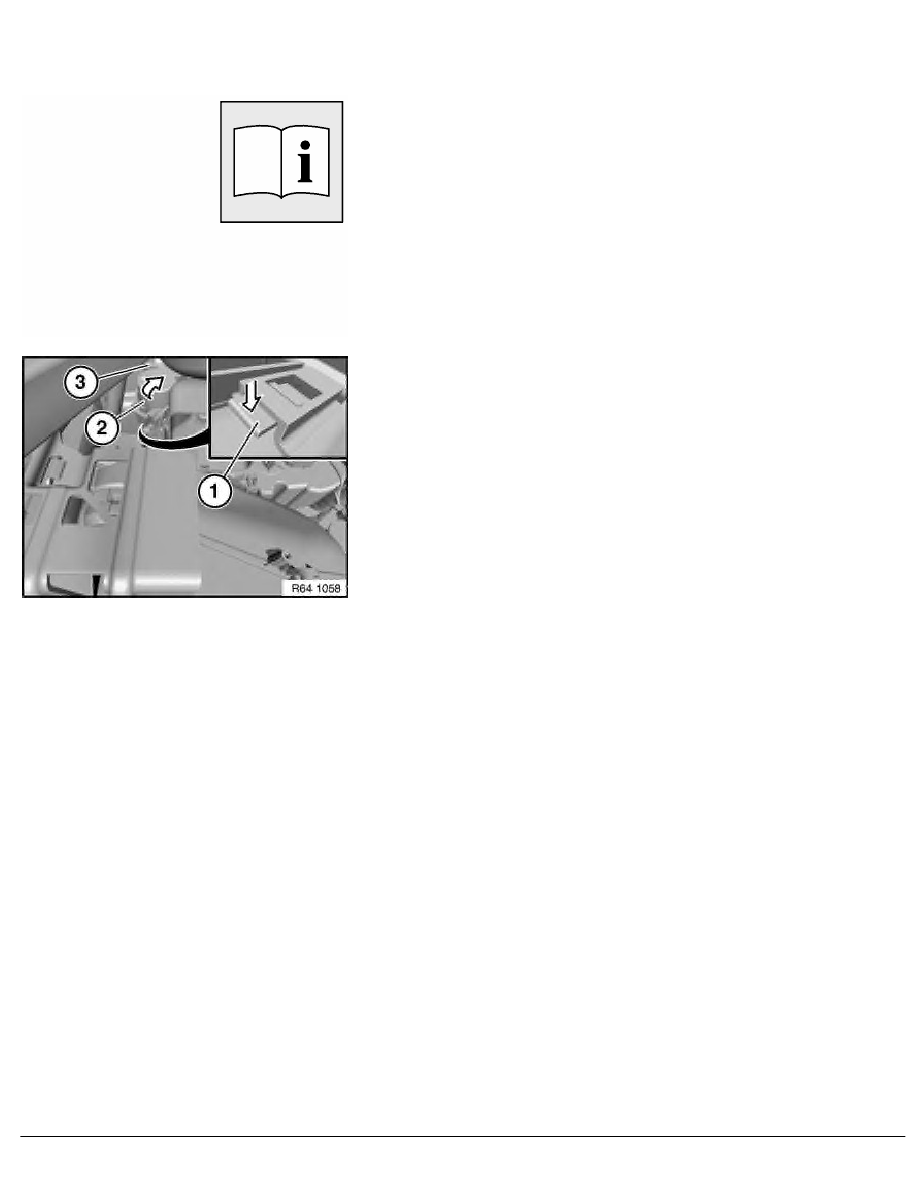

Press lock (1) and pull out servodrive for defrosting flap (2) in
direction of arrow.
Unfasten plug connection (3) and disconnect.
Installation:
Follow repair instruction "Installing servodrive".
Servodrive for defrosting flap (2) must snap audibly into place.
