6 Series M6 (S85) Coupe
86 21 ...
Removing hinge bracket on rear lid
Note:
Remove rear lid,
refer to 86 21 ... Removing lid.
Remove gas spring, remove gas spring on hinge side only,
refer to 86 21 ... Removing gas spring.

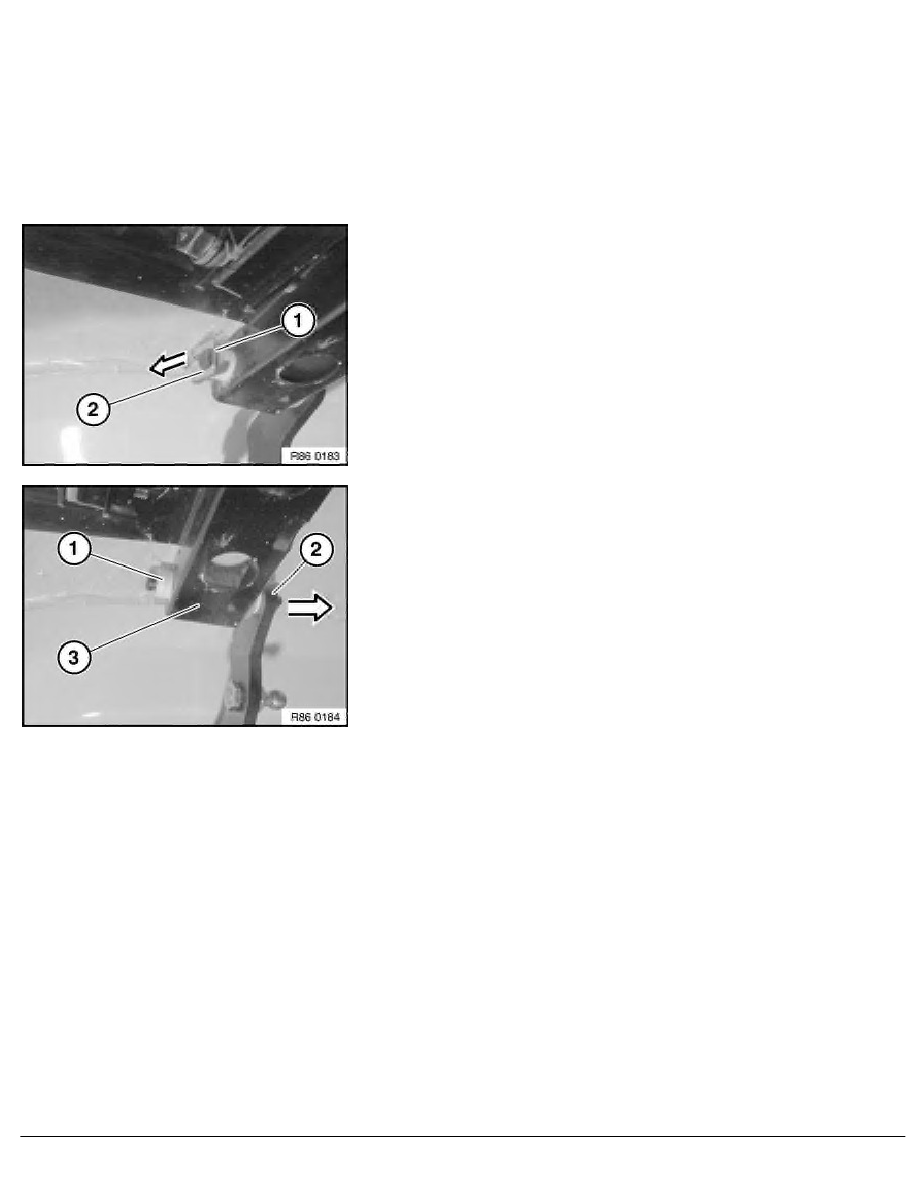

Raise edge (1) of retaining clip (2) and slide in direction of arrow
towards rear.
Remove plastic washer (1). Pull hinge bracket (2) in direction of
arrow out of mounting bracket (3).
Installation:
There must always be a plastic washer (1) fitted on left and
right sides of mounting bracket (3).
RA Removing hinge bracket on rear lid
