6 Series E64 M6 (S85) CONVER

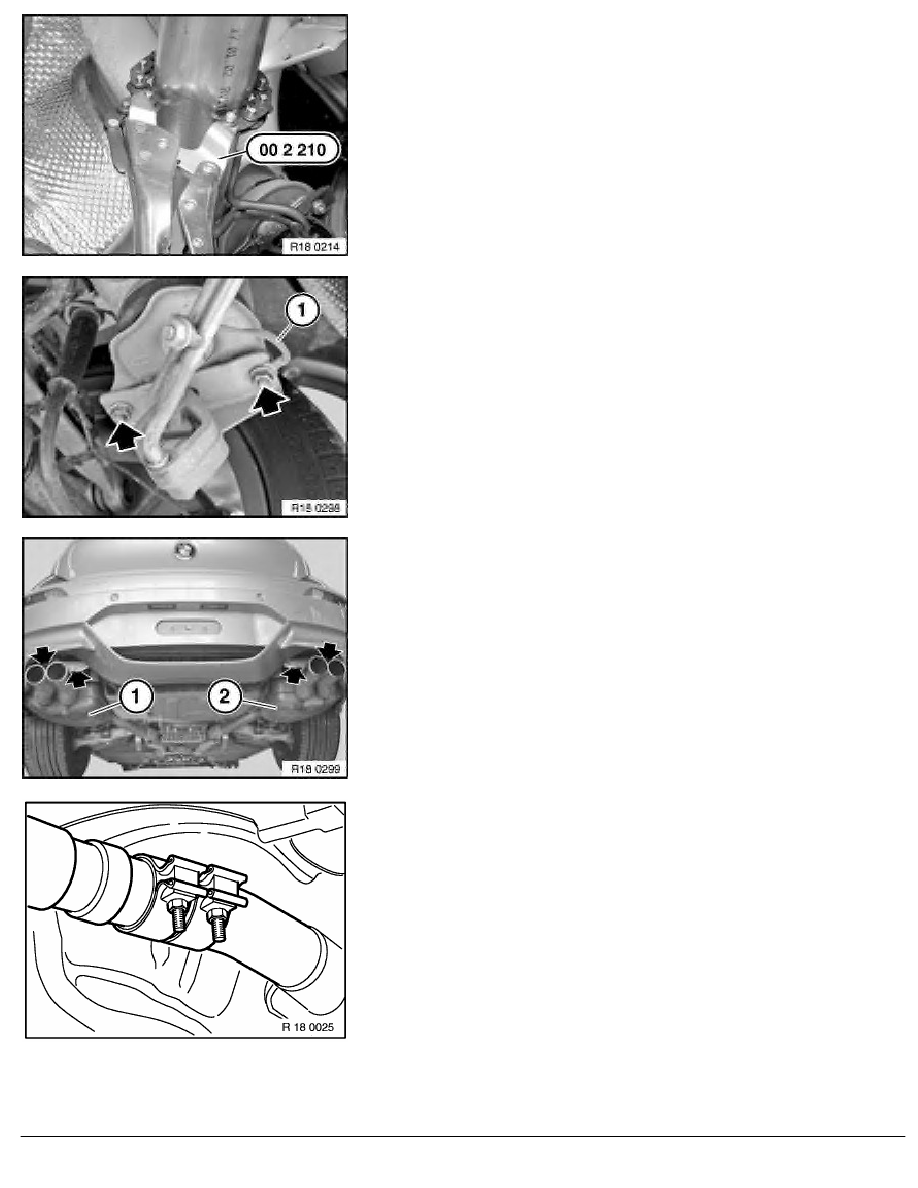

Cut exhaust pipes with special tool 00 2 210 at marked points
and deburr.
Note:
The same procedure applies to the opposite side.
Unscrew nuts.
Modify grounding strap (1).
Unscrew nuts.
Remove rear mufflers (1 and 2).
Connect rear muffler to centre muffler.
Align clamp and tighten down.
RA Replacing both rear mufflers (S85)
