6 Series E64 M6 (S85) CONVER
41 35 101
Replacing rear left side panel
Read contents of Body, General.
Refer to the description texts of the KSD CD (FRU 41 35 101)
for details of stripping-down and rigging work.
Spot-weld bonding is used on this vehicle. Observe specific
procedure.
Following new body parts are required (refer to EPC):
-

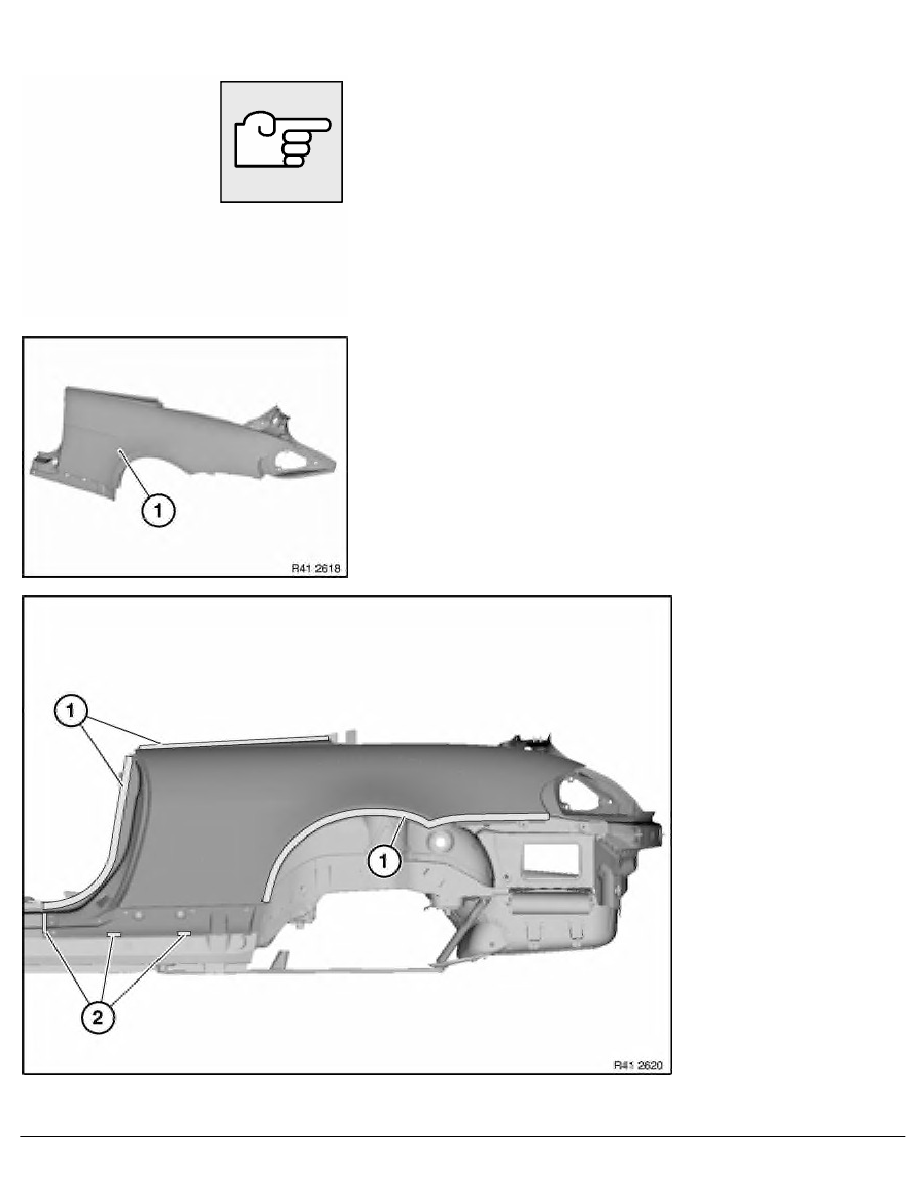

(1) Side panel, rear
Open weld joints in areas (1) and (2).
RA Replacing rear left side panel
BMW AG - TIS
07.02.2013 07:02
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
