6 Series E64 M6 (S85) CONVER
67 11 610

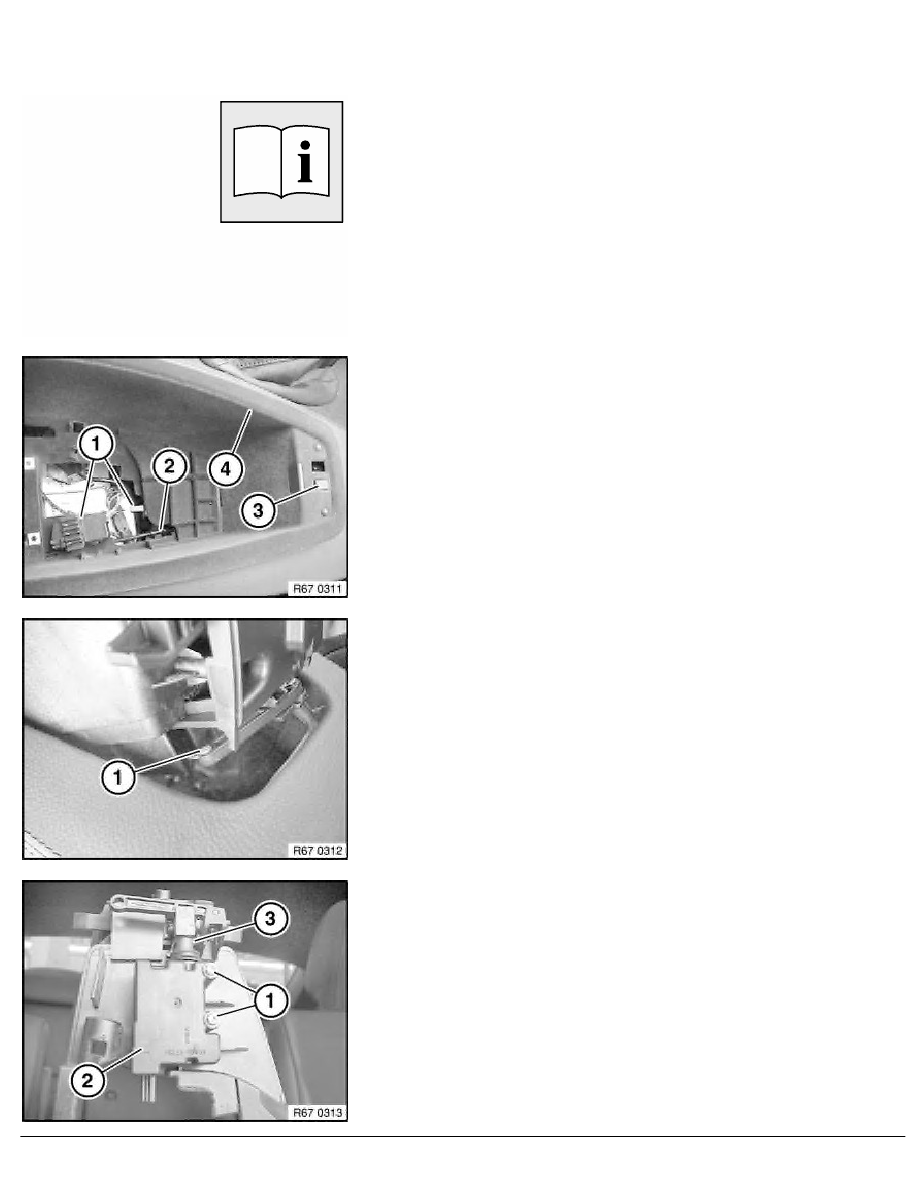

Removing and installing/replacing servodrive
in storage compartment
Necessary preliminary tasks:
•
Disconnect battery negative lead
Disconnect plug connections (1)
Disconnect Bowden cable (2).
Press in button (3) and lift storage compartment (4) out of centre
armrest.
Disconnect Bowden cable (1).
Installation:
Ensure correct cable routing.
Release screws (1).
Pull servodrive (2) with locator (3) forwards from guide.
RA Removing and installing/replacing servodrive in storage compartment
BMW AG - TIS
07.02.2013 13:18
Issue status (12/2007) Valid only until next DVD is issued
