6 Series E64 M6 (S85) CONVER
33 1 340
Fixture
In conjunction with:
23 1 300
Note:
For installing drive pinion in rear axle
differential housing
Series:
E23, E24, E28, E32, E34, E38, E39, E46,
E52, E53, E60, E61, E63, E64, E65, E66,
E67, E81, E83, E85, E86, E87, E90, E91,
E92
Transmission:
Rear diff. type G, rear diff. type K, rear
diff. type M, S5D 260Z, S5D 310Z,
S5D 320Z
Storage location:
C22
Order number:
33 1 340

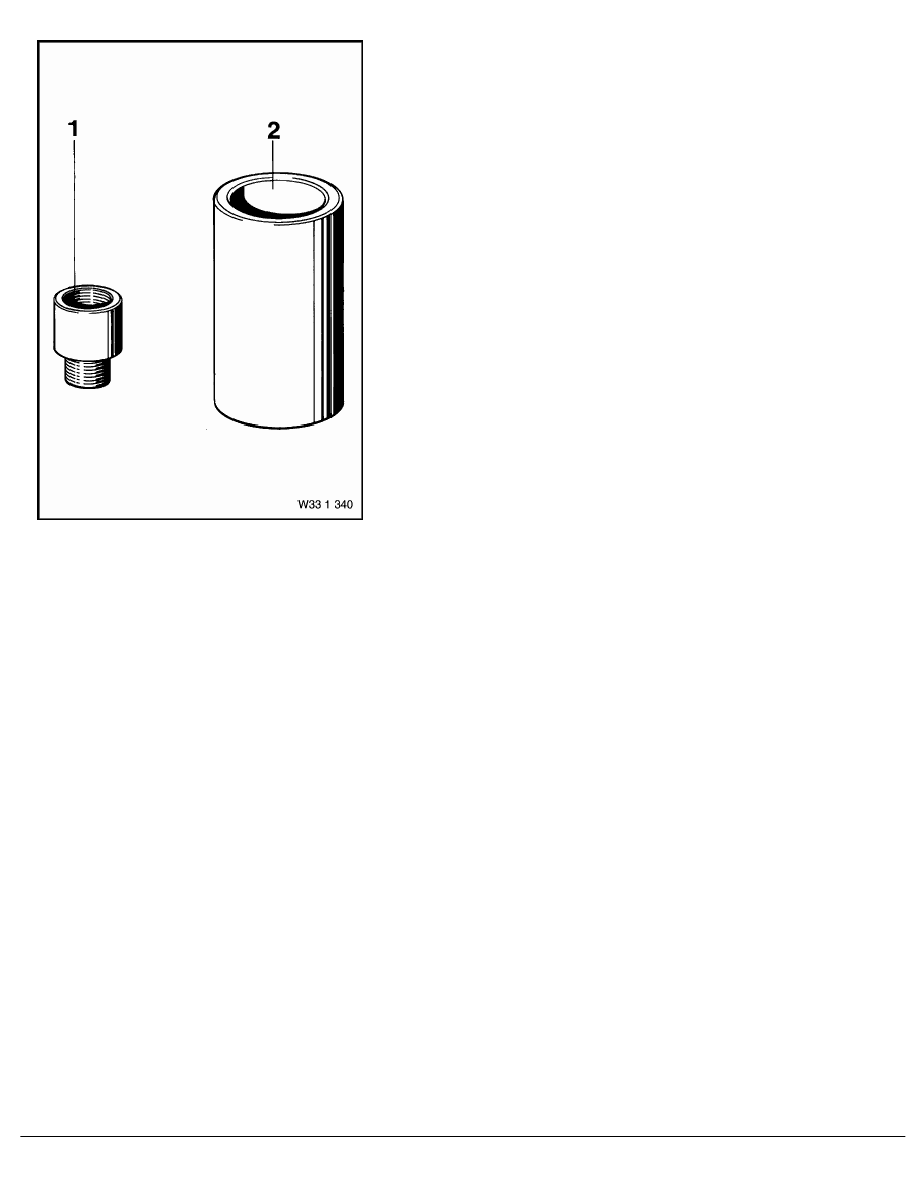

Fixture
Consisting of:
1 = 33 1 341
Reducer
2 = 33 1 342
Spacer bushing
Note: For transmissions S5D 260Z, S5D
310Z and S5D 320Z"
SWZ Fixture
BMW AG - TIS
08.02.2013 03:15
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
