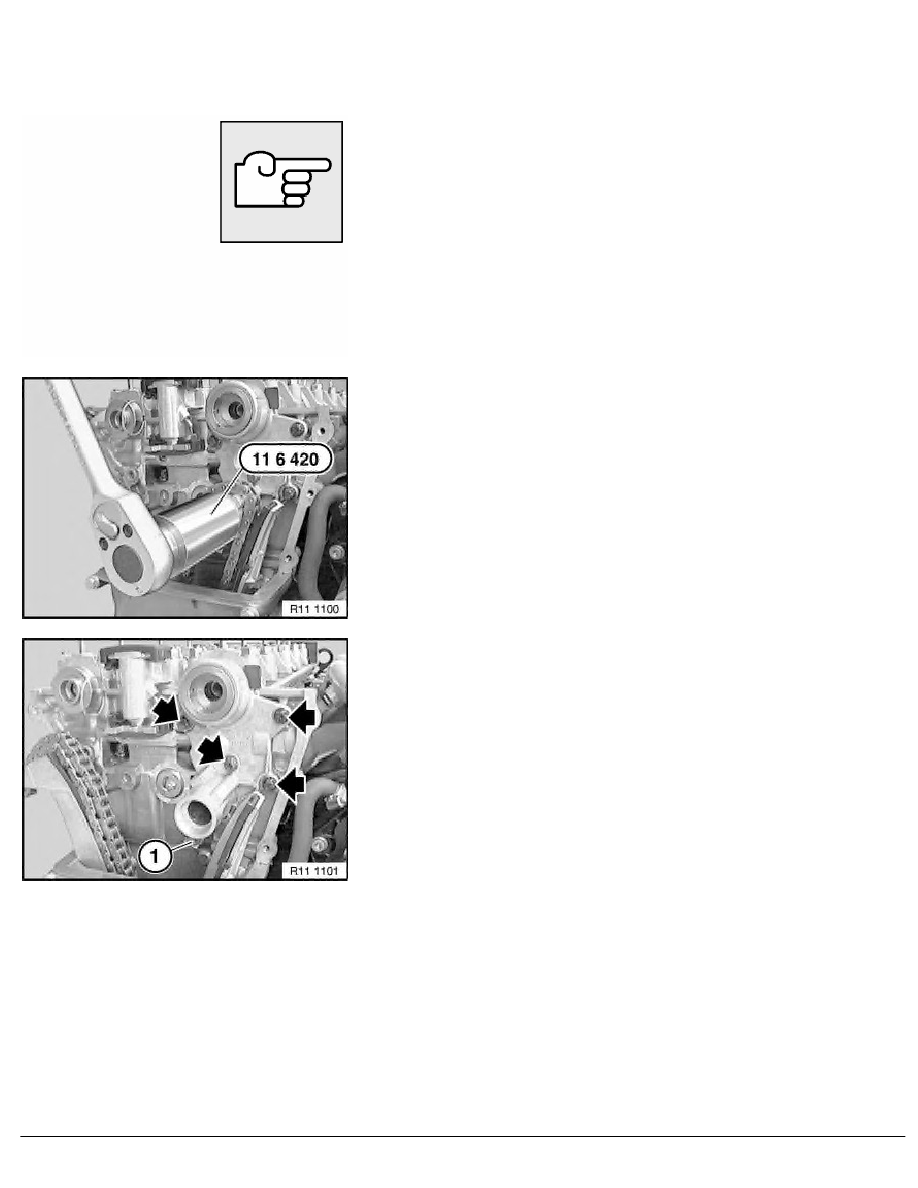

7 Series E38 735iL (M62) SAL
Note:
If the camshaft adjustment unit distributor and the seal (three
plain compression rings) are worn, the removal operation may
be awkward.
By moving it back and forth, carefully detach distributor straight
from camshaft.
Note:
The camshaft adjustment unit distributor is sealed on the
inside with plain compression rings.
Traces of wear on the distributor plain compression rings up
to a depth of approx. 0.1 to 0.2 mm are normal.
If there is pitting or scoring in the longitudinal direction, the
plain compression rings and the distributor must be replaced.
If necessary, remove seal (three plain compression rings).
Note:
The plain compression rings have catches at the joint.
Press compression ring (1) upwards as far as possible and
remove catch.
Carefully pull compression ring (1) apart and remove towards
front.
Installation:
If necessary, replace seal (three plain compression rings).
Carefully pull compression ring (1) apart and install.
Press compression ring (1) upwards as far as possible and
install catch.
RA Removing and installing/replacing distributor on right camshaft adjustment unit
