7 Series E38 740iL (M62) SAL
51 42 000
Removing and installing rear left or right door
trim panel (Protection)

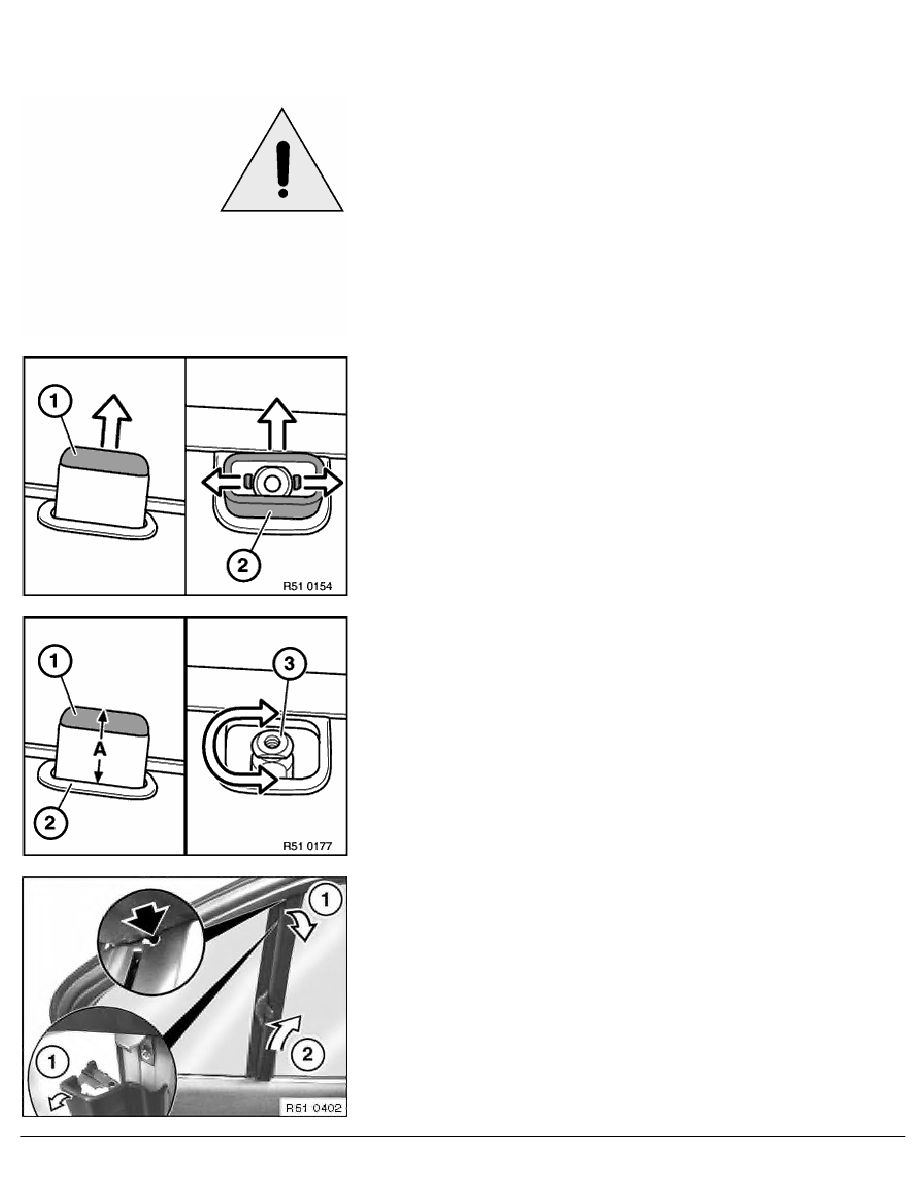

Caution!
Dismantle screw for lock retainer (malfunction if actuating rod
is bent).
Remove cap (1).
Lift out locking unit and pull button (2) upwards to remove.
Installation:
Check gap (A) between cap (1) and guide (2).
(A) = 14.5
±
1 mm
If necessary, remove button and adjust sleeve (3).
Version with sun roller blind on side window:
Unfasten top of sun roller blind (1) and lift upwards and
backwards (2) to remove.
RA Removing and installing rear left or right door trim panel (Protection)
BMW AG - TIS
18.02.2013 09:01
Issue status (12/2007) Valid only until next DVD is issued
