7 Series E38 750iL (M73) SAL
52 24 005

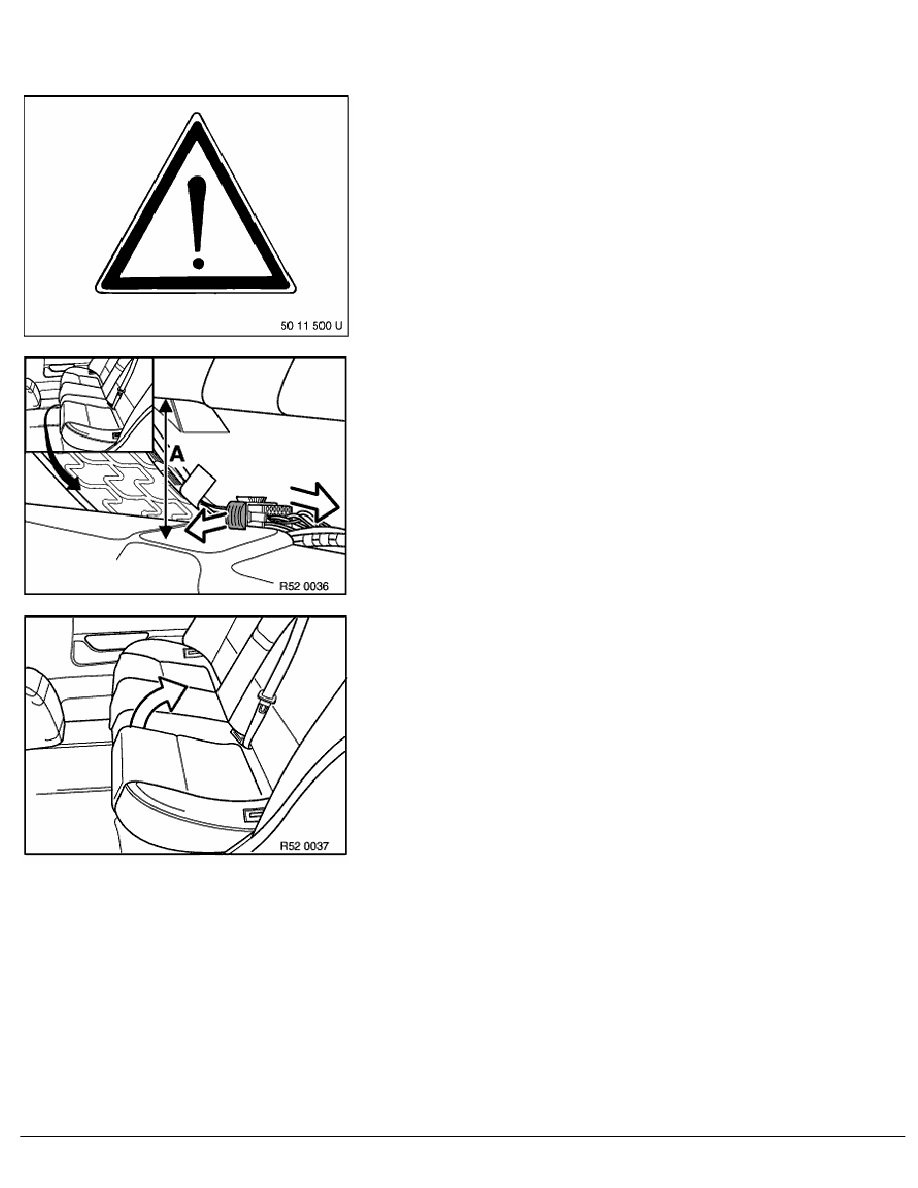

Removing and installing / replacing rear seat
(normal)
Rear seat with seat heating and/ or electrically adjustable
headrests:
Caution!
If necessary, disconnect connector connection prior to
removal (risk of damage).
Rear seat with seat heating and/ or electrically adjustable
headrests:
If necessary, unclip rear seat to maximum setting (dimension A),
unlock connector and disconnect.
(A) = 150 mm
Installation:
Carry out operational check.
Lift out rear seat.
RA Removing and installing / replacing rear seat (normal)
