7 Series E65 735i (N62) SAL

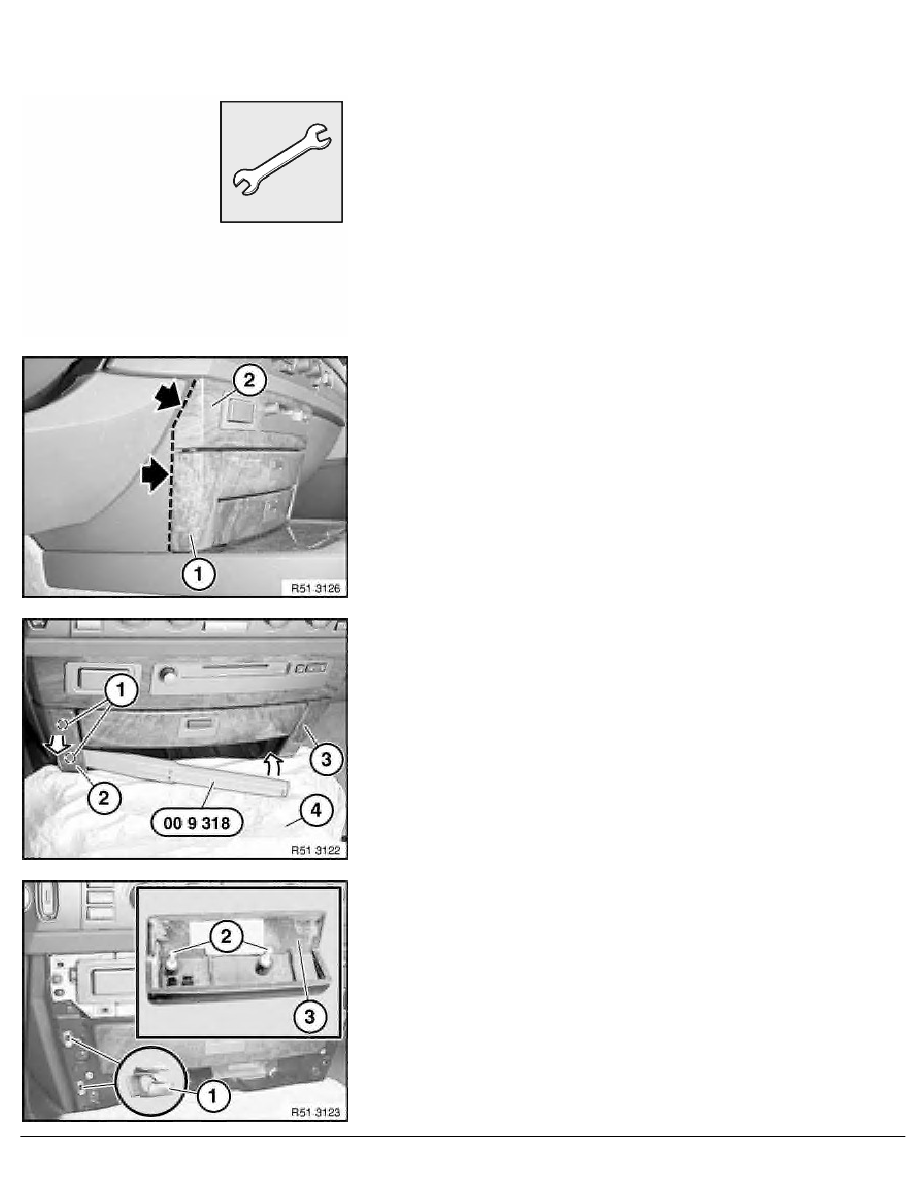

Decorative trim for audio system controller:
Important!
Remove lower storage tray and side decorative trims before
removing decorative trim for audio system controller (risk of
damage).
Fit protective cover (2) to prevent scratching.
Open drawer (1).
Using special tool 00 9 318 (universal wedge), lever out
catches (4) and remove decorative trim (3).
Installation:
If necessary, replace faulty clips (1) on left/right.
Catches (2) of decorative trim (3) must not be damaged.
Decorative trim on storage tray (drawer):
Note:
Operations for removing decorative trim on top and bottom
drawers are identical.
Remove storage trays (drawers) from function carrier
Decorative trim on bottom drawer:
Using a screwdriver, press pin (2) on left/right out of clip (1).
Lever decorative trim (4) in direction of arrow out of drawer (3).
RA Removing and installing / replacing decorative trims (all) on function carrier
