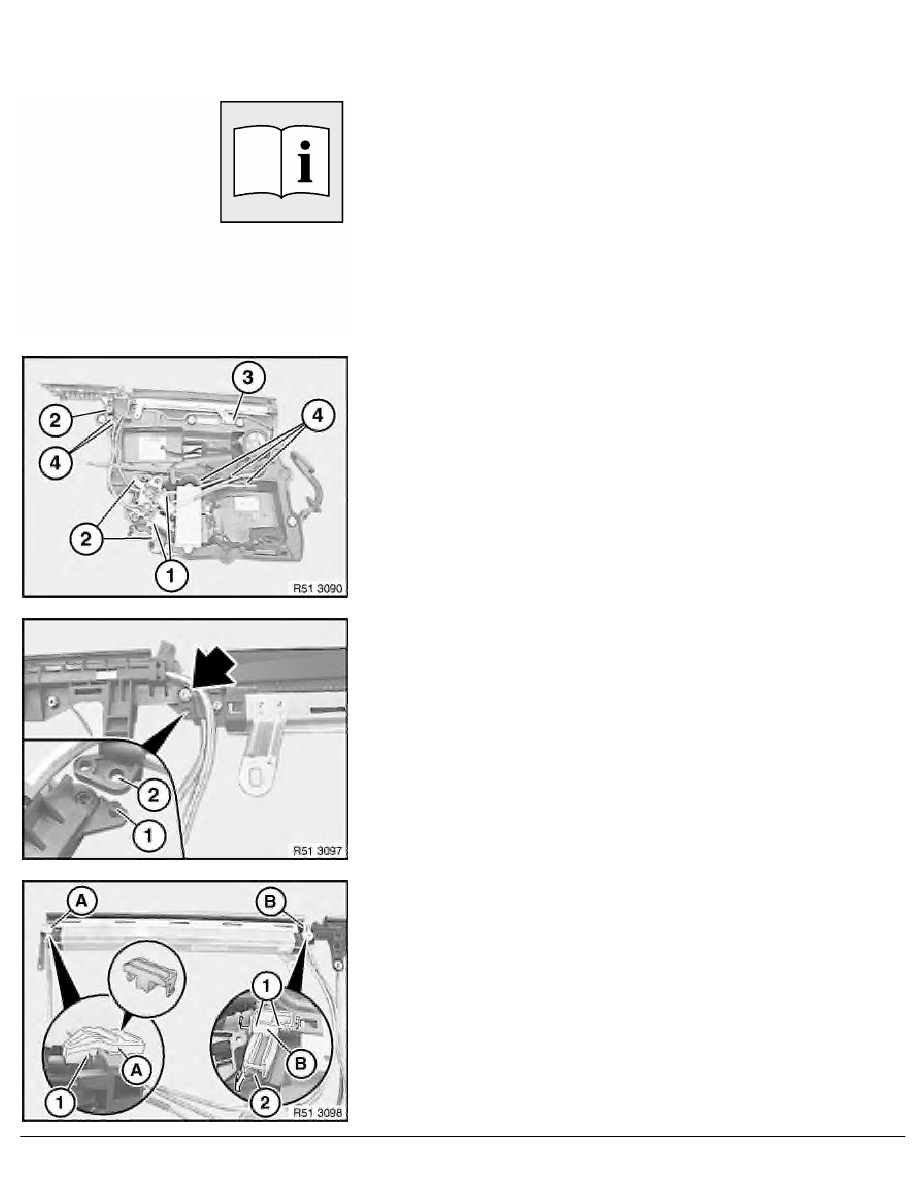

Removing and Installing Roller Sun Blind on Side Window of Left or Right Side
Remove outer brush cable.
Installation:
Make sure lug (1) is seated in groove (2).
Pull roller sun blind (1) upwards slightly and remove inner brush
cable (2).
If necessary, pull off chest strip (3) towards top.
Installation:
Make sure lug is seated in groove (4).
Adjusting:
Note:
If cover of roller sun blind (1) sags at line (A), this can be
corrected by moving bearing (3).
Move roller sun blind (1) electrically into "top" end position.
Release screw (2) and move bearing (3) up or down until cover
is taut at line (A).
Tighten screw (3).
