7 Series E65 735i (N62) SAL
64 22 191
Removing and installing/replacing rear
compartment fresh-air grille (automatic A/C
High)
Special tools required:
•
00 9 341
Important!
Proceed with care so as to avoid damaging the centre armrest
and the fresh-air grille.
Build date up to 03/2005:

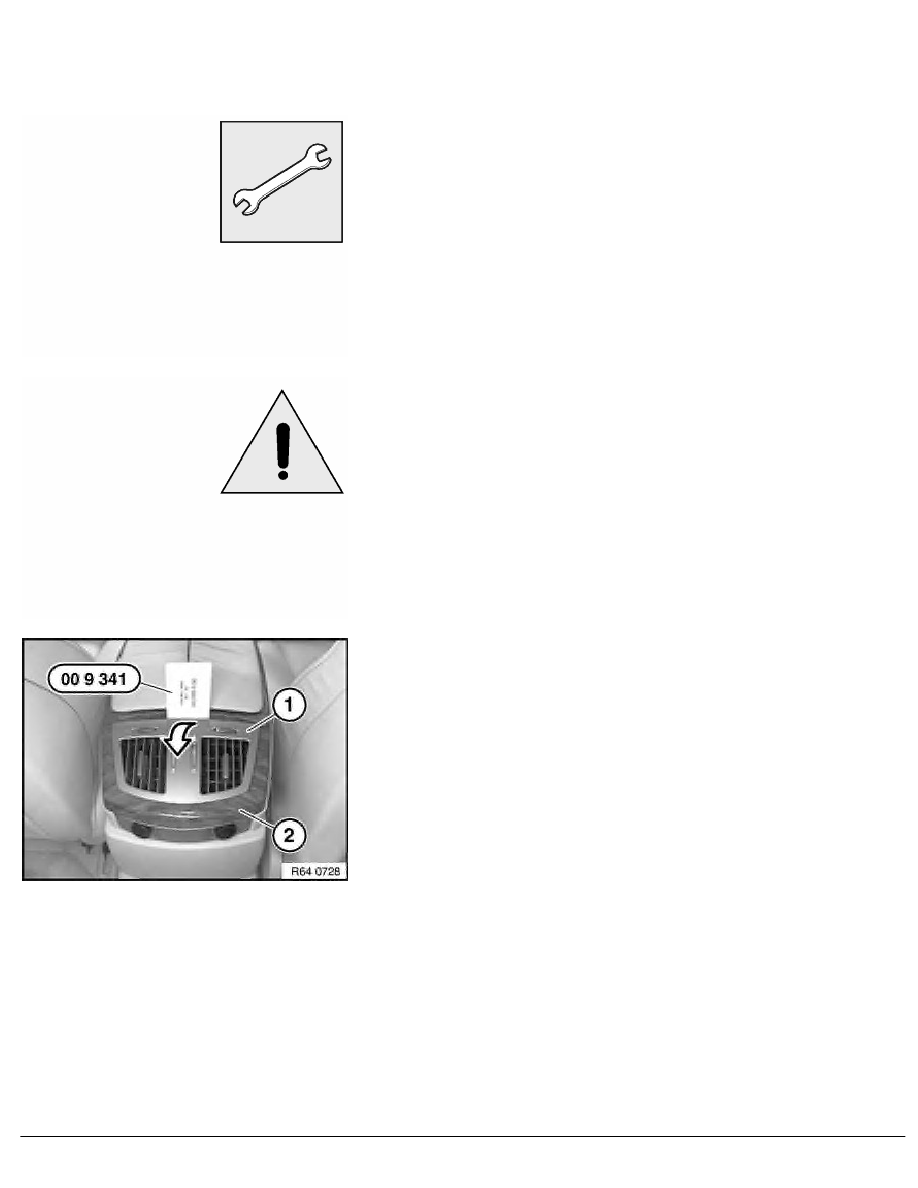

Lever out rear compartment fresh-air grille (1) with special tool
00 9 341 in direction of arrow and pull out of centre armrest (2).
Disconnect plug connection.
