7 Series E66 750Li (N62TU) SAL
16 .. ...

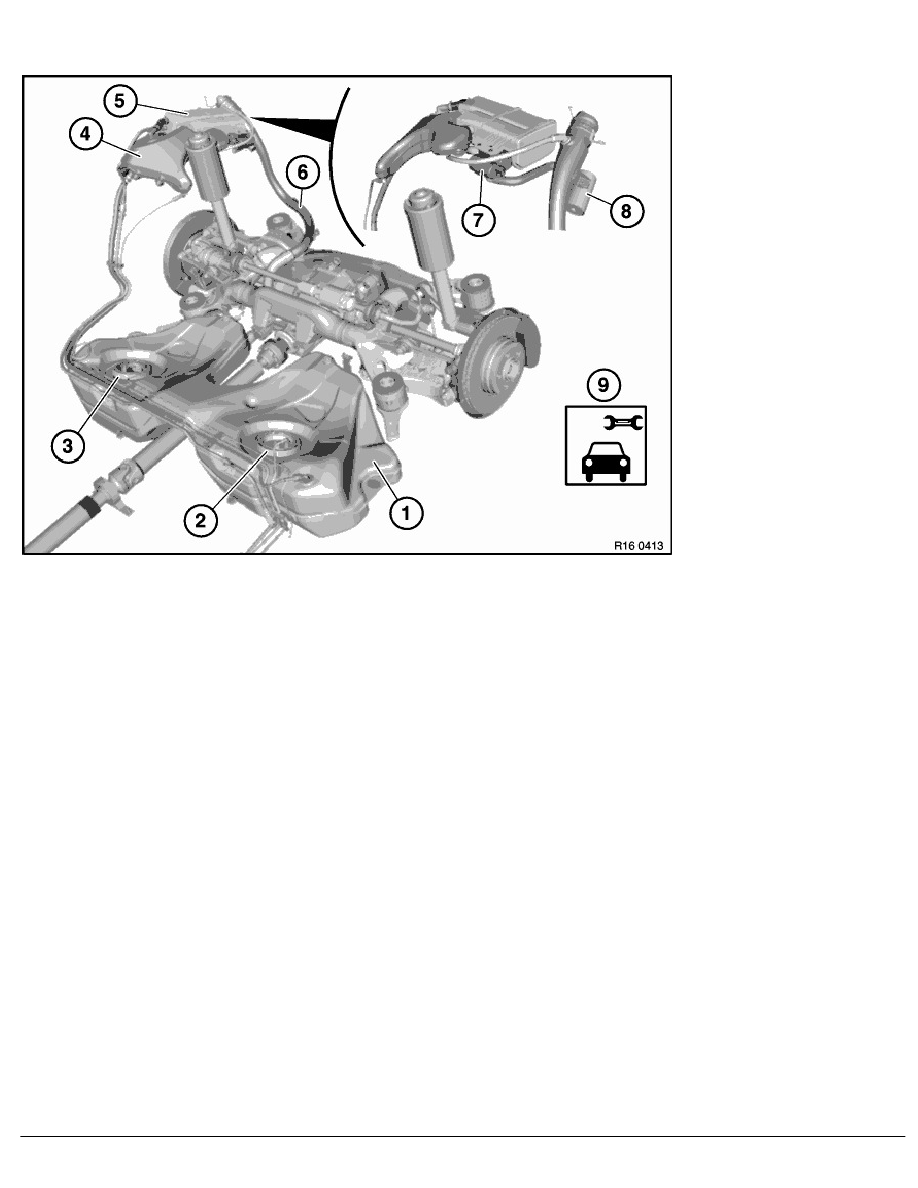

Overview of fuel supply system
0 General / drawing off fuel
1
Fuel tank
6
Fuel filler pipe
2
Left sensor unit/suction jet pump
7
DM-TL (USA)
3
Fuel pump/right sensor unit/suction jet pump
8
Dust filter
4
Expansion tank
9
Testing
5
Active carbon filter
RA Overview of fuel supply system
