X Series E70 X5 3.0d (M57T2) OFFRD
Warning!

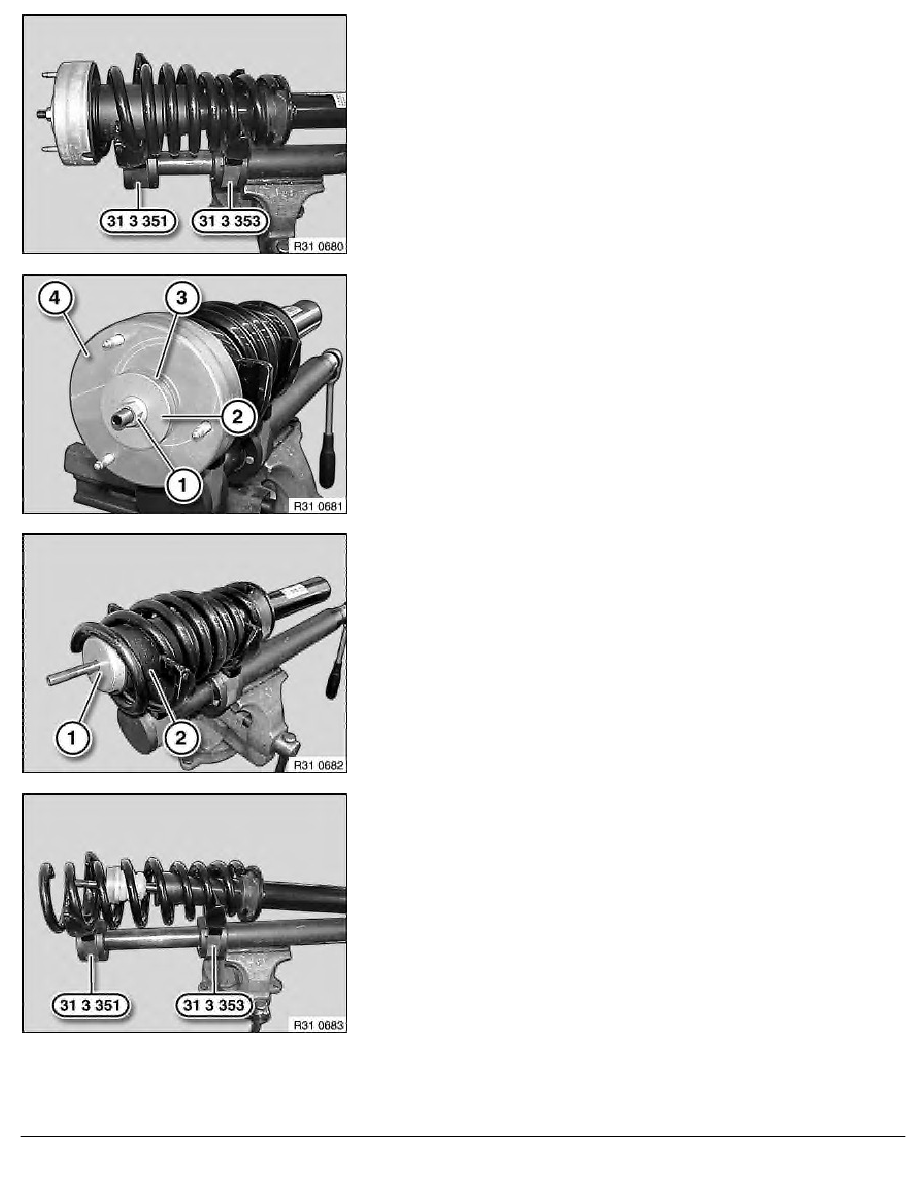

Coils of coil spring must be located completely in recesses of
special tools 31 3 351 and 31 3 353 !
Compress coil spring until stress on piston rod is relieved.
Slacken nut (1).
Remove joint disc (2), support bearing upper section (3) and
support bearing flange (4).
Remove support pot (1) and protective tube (2).
Relieve tension on coil spring.
Remove coil spring with shock absorber from special tools
31 3 351 and 31 3 353 .
Remove shock absorber from coil spring.
RA Replacing front left or right spring strut shock absorber
