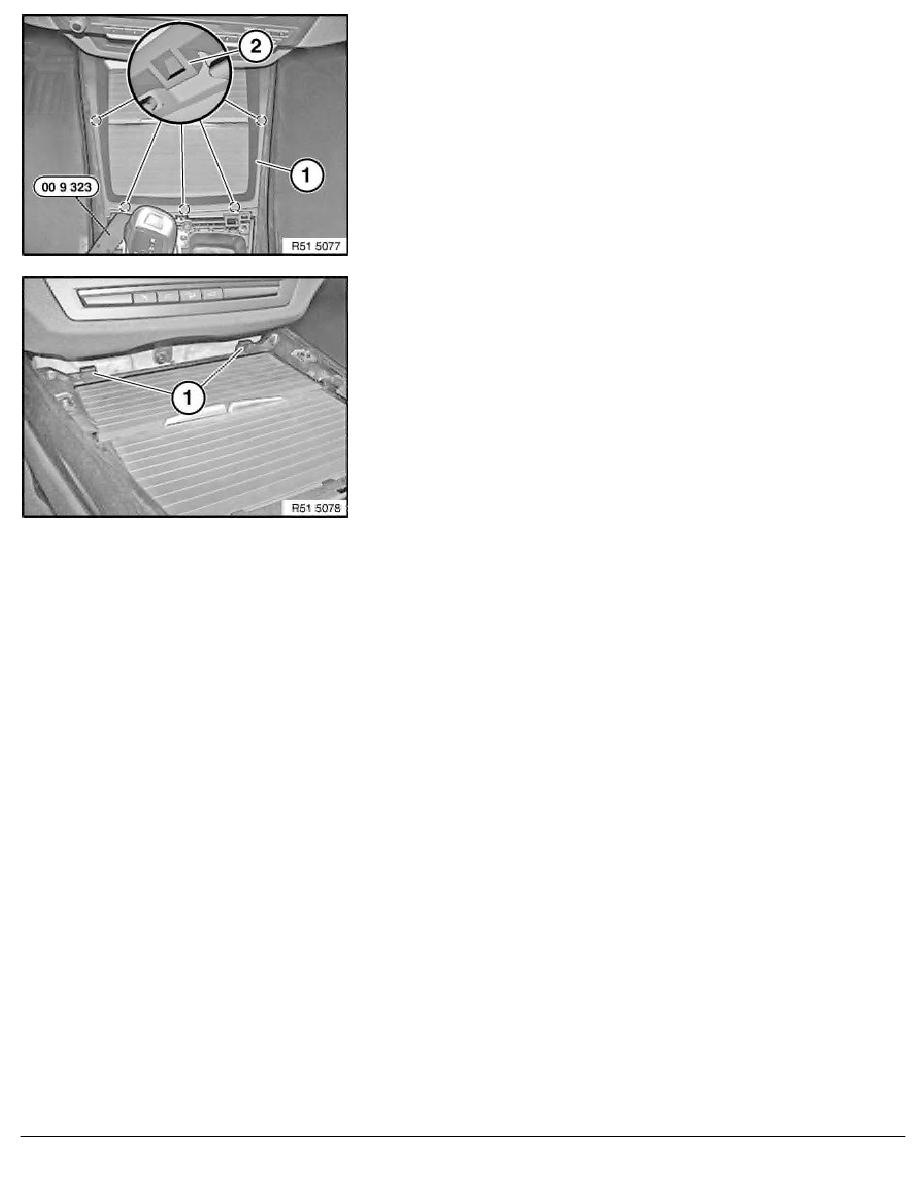

Unclip trim (1) at catches (2) with special tool

00 9 323  and

feed out towards rear.

Installation:

Slide trim first into guides (1), then clip into centre console.

RA  Removing and installing/replacing trim on front cup holder
