X Series E70 X5 3.0d (M57T2) OFFRD
52 16 ...
Replacing padding for front seat thigh
support

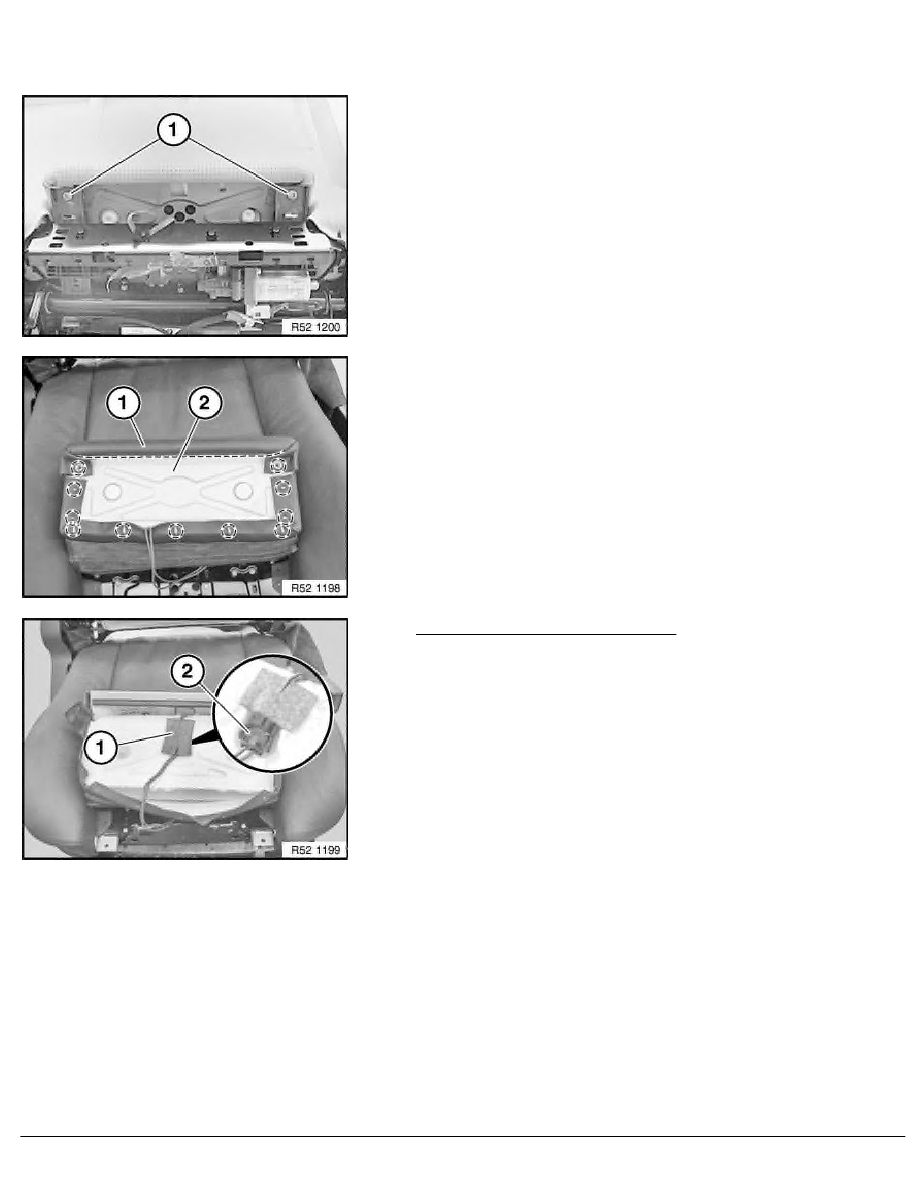

Release screws (1).
Installation:
Insert screws (1) with Loctite.
Unhook seat cover (1) from marked area.
Remove carrier (2) for thigh support.
For seat heating optional extra only:
Carefully detach felt (1) from thigh support.
Unfasten plug connection (2) and disconnect.
Installation:
Ensure correct cable routing.
Remove padding from cover.
RA Replacing padding for front seat thigh support
