X Series E70 X5 3.0d (M57T2) OFFRD
52 26 400
Replacing seat cover for rear seat (through-
loading system)
Special tools required:
•
52 0 050
Necessary preliminary tasks:
•
Remove rear seat

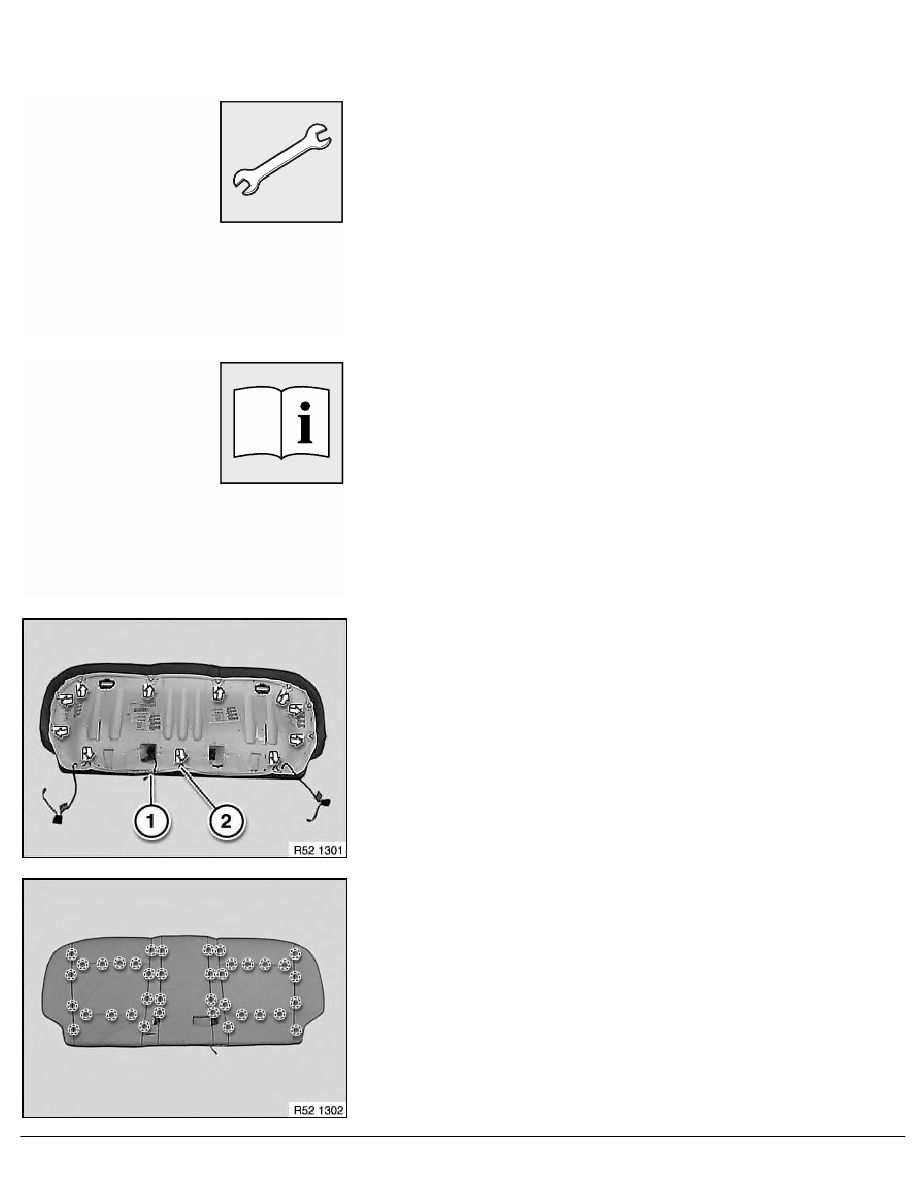

Open tension cable (1).
Remove tension cable from wire eyelets (2).
Disconnect retainers in marked area
Remove all remnants of clips from cover and support.
RA Replacing seat cover for rear seat (through-loading system)
