X Series E70 X5 3.0d (M57T2) OFFRD
52 30 080
Removing and installing/replacing left seat
backrest frame
Necessary preliminary tasks:
•
Remove 3rd seat row
•
Remove backrest cover
•
Removing actuating mechanism for rear seat backrest
•
Remove outer trim

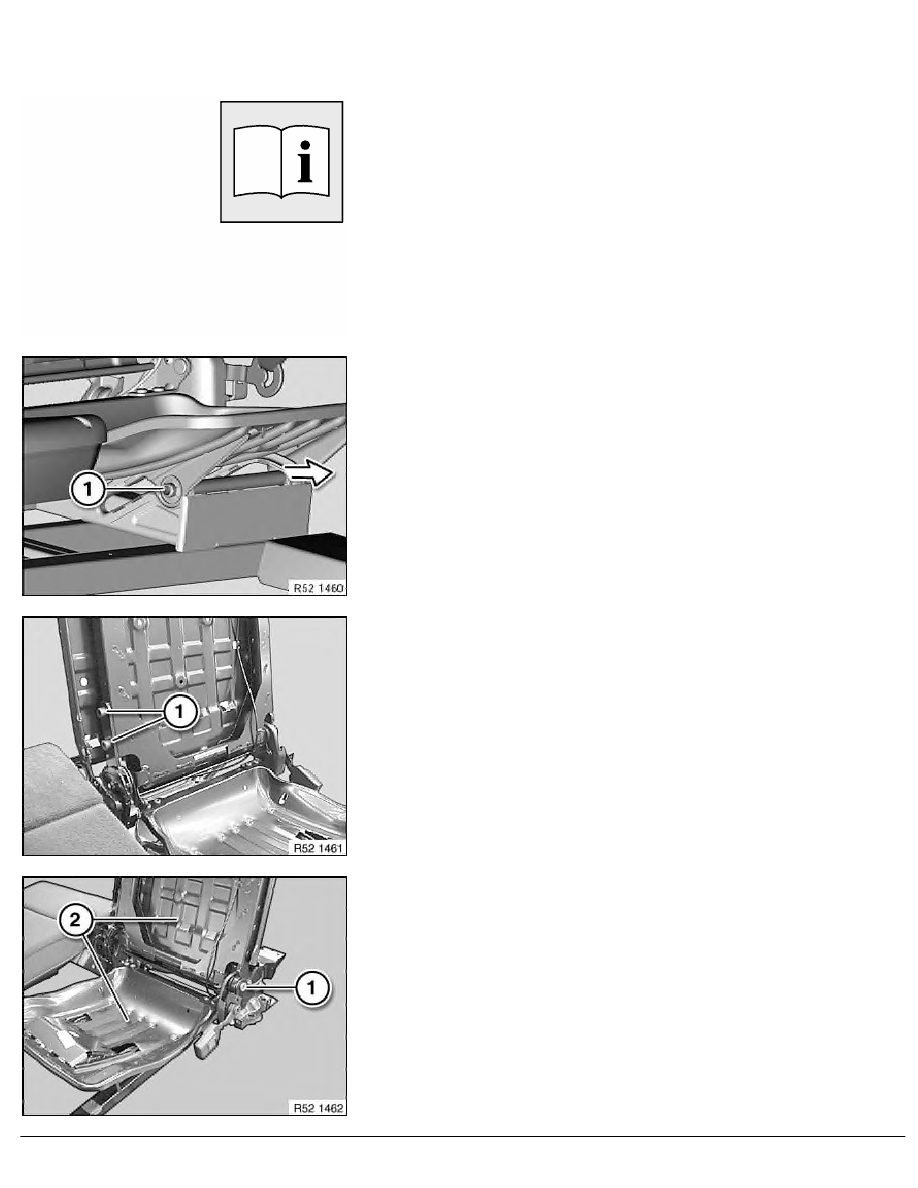

Detach Starlock washer (1) from shaft.
Remove shaft.
Installation:
Fit left and right plastic sleeves on shaft.
Release fitting screws (1).
Tightening torque: 52 30 02AZ
.
Release outer bearing screw (1).
Tightening torque: 52 30 03AZ
.
Remove seat backrest frame (2) from assembly frame.
RA Removing and installing/replacing left seat backrest frame
