X Series E70 X5 3.0d (M57T2) OFFRD
52 30 ...

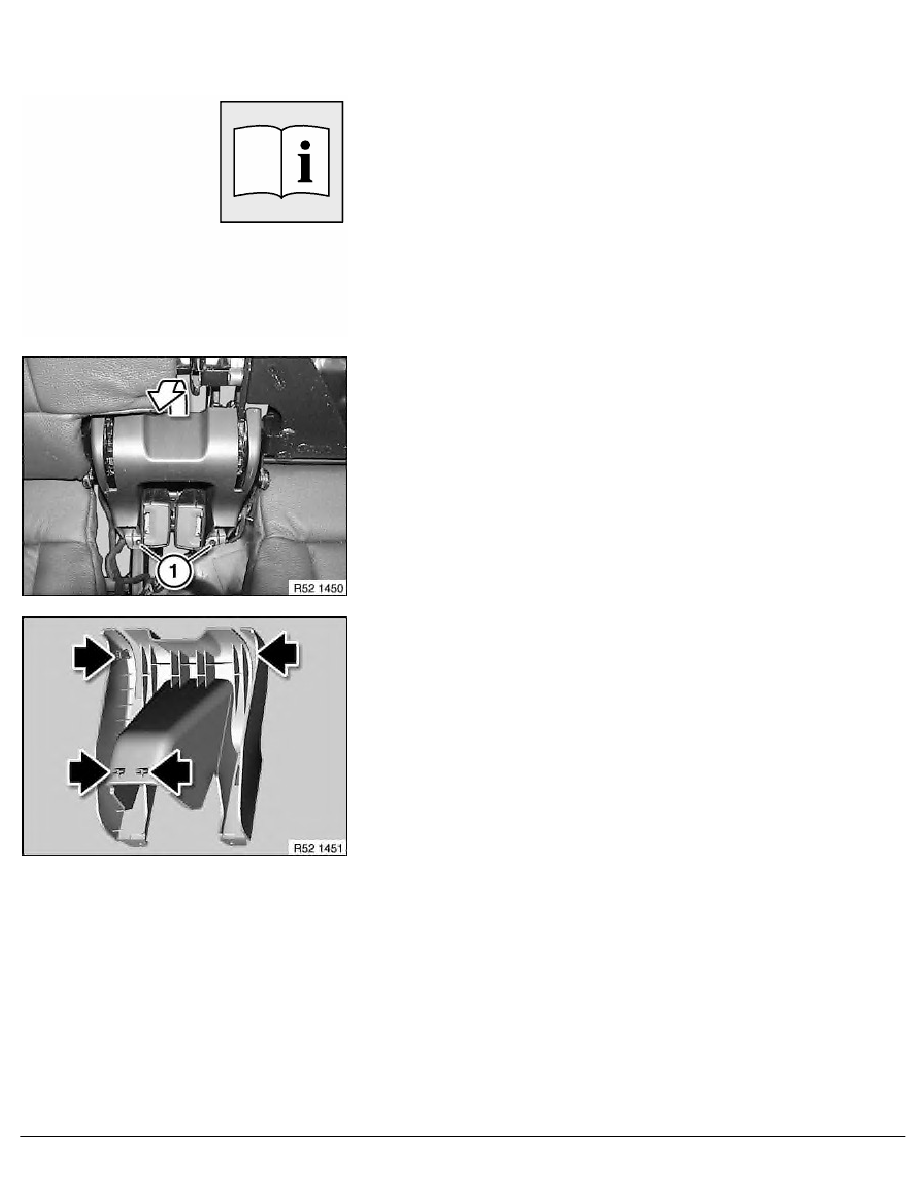

Removing and installing middle trim for 3rd
seat row
Necessary preliminary tasks:
•
Remove centre console.
Release screws (1).
Remove trim from assembly frame.
Installation:
Make sure guides are correctly seated in assembly frame.
RA Removing and installing middle trim for 3rd seat row
