X Series E70 X5 3.0d (M57T2) OFFRD
64 31 053
Removing and installing or replacing fresh air
duct
Necessary preliminary tasks:
•
Remove microfilter housing

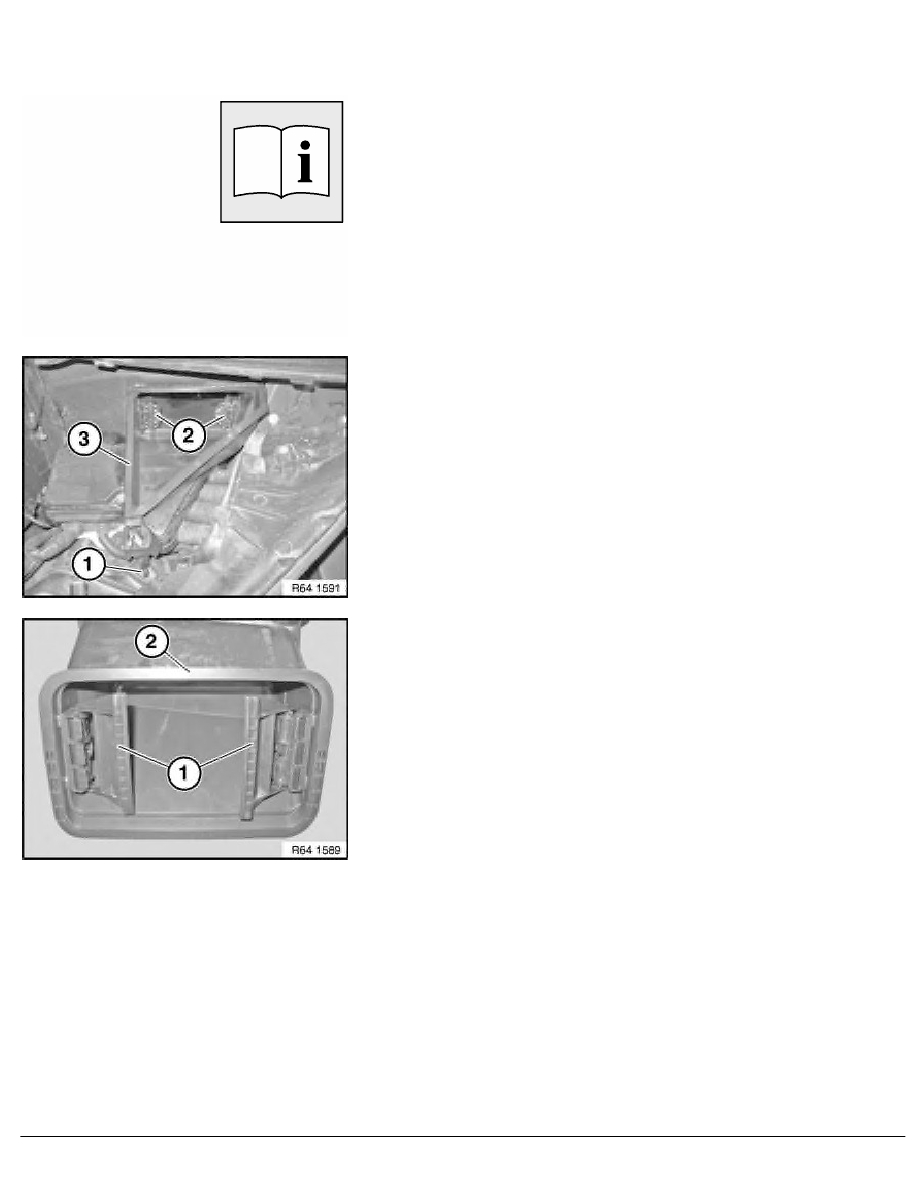

Unclip retaining pin (1).
Release retaining clips (2) and feed out fresh-air duct (3).
Installation:
Make sure fresh-air duct (3) is securely seated.
Make sure retaining clips (1) are correctly seated on fresh-air
duct (2).
RA Removing and installing or replacing fresh air duct
BMW AG - TIS
04.02.2013 07:01
Issue status (12/2007) Valid only until next DVD is issued
