X Series E70 X5 3.0Sd (M57T2) OFFRD
64 12 673
Replacing left or right electric auxiliary heater
- rear cabin
Necessary preliminary tasks:
•
Move driver's seat into "front" and "top" position.
For purposes of clarity, pictures show driver's seat removed.

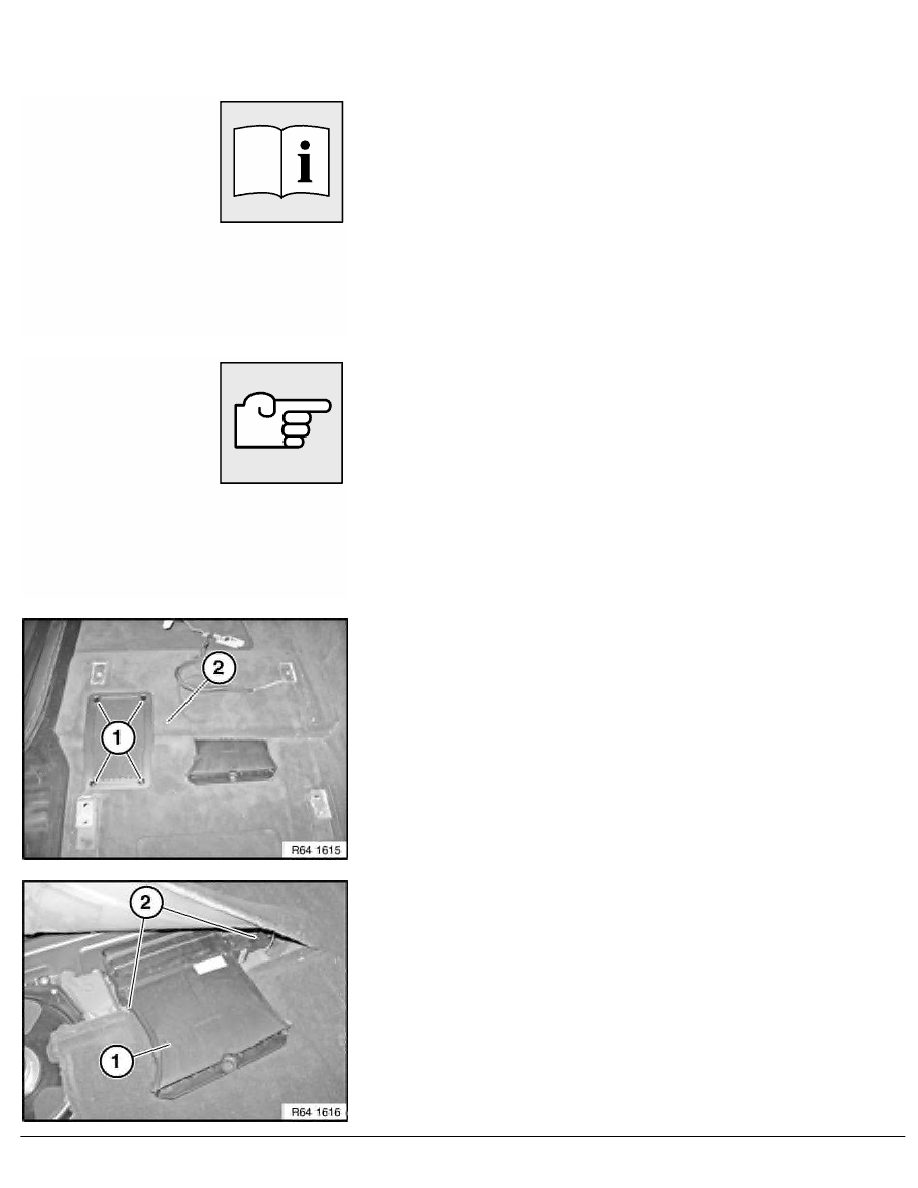

Remove speaker trim (1) and fold back floor carpet (2) in
working area.
Remove rear cabin air duct (1) and disconnect plug
connections (2).
Installation:
Ensure that air duct (1) is correctly seated.
RA Replacing left or right electric auxiliary heater - rear cabin
BMW AG - TIS
05.02.2013 17:27
Issue status (12/2007) Valid only until next DVD is issued
