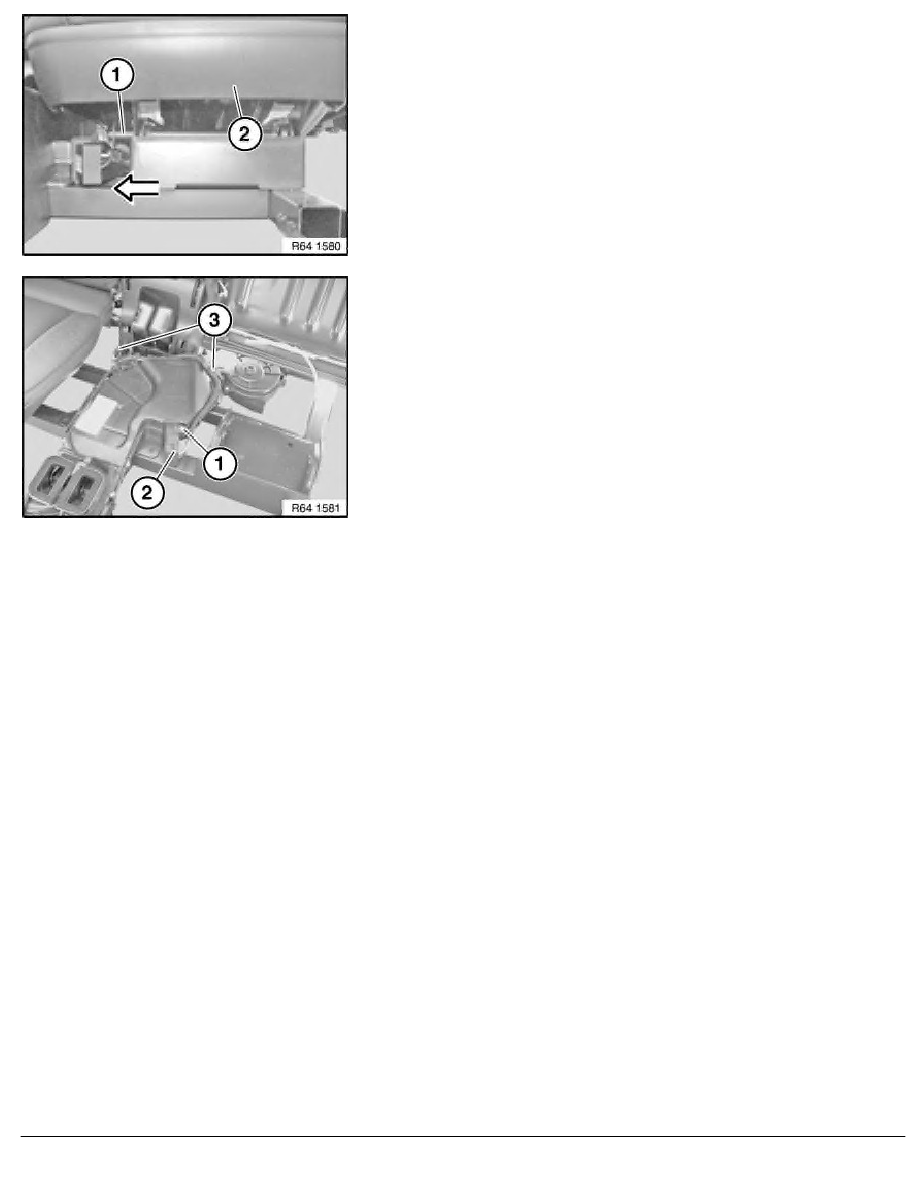

Slide holding rod (1) in direction of arrow out of guides and tilt
seat cushion (2) forwards.
Release screw (1) and feed out auxiliary heater (2).
Installation:
Ensure correct line routing (3).
RA Replacing electric auxiliary heater - 3rd seat row -
