X Series E70 X5 4.8i (N62TU) OFFRD
11 52 020

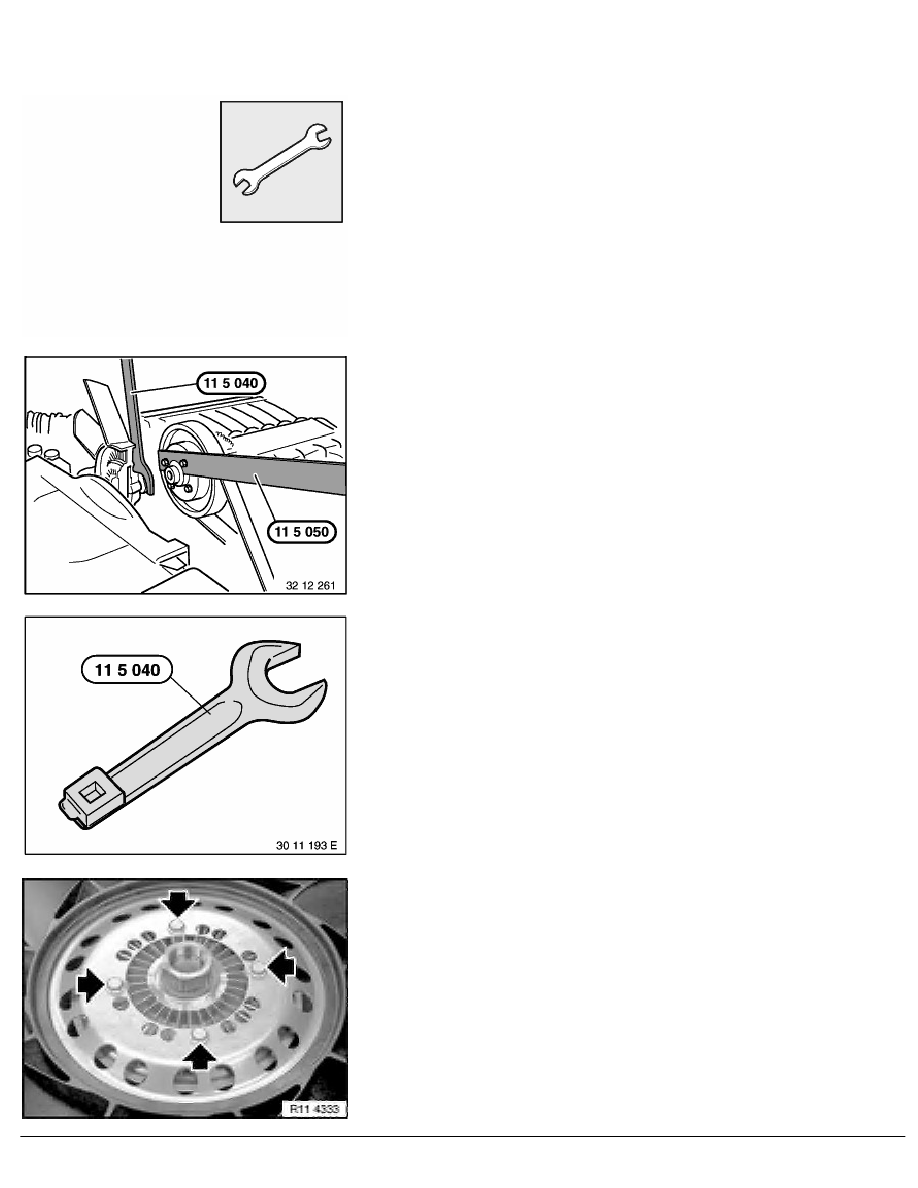

Removing and installing or replacing fan
clutch (N62)
Special tools required:
•
11 5 040
•
11 5 050
Caution!
Left-hand threads.
Using special tool 11 5 050 brace against pulley and unfasten
cap nut from water pump using special tool 11 5 040 .
Remove fan wheel with fan coupling from water pump.
Installation:
Tighten down fan impeller using special tool 11 5 040 .
Tightening torque 11 52 1AZ.
Note:
When using special tool 11 5 040 , 30 Nm on the torque
wrench scale are equivalent to a tightening torque of 40 Nm.
Release screws, detach fan from fan clutch.
