X Series E70 X5 4.8i (N62TU) OFFRD
22 11 001
Replacing right engine mount (N62TU)
Necessary preliminary tasks:
•
Disconnect battery
•
Secure engine in installation position
•
Remove reinforcement plate
•
Drain off engine oil
•
Remove heat shields
•
Remove oil dipstick guide tube
•
Remove starter motor
•
Remove engine support arm.

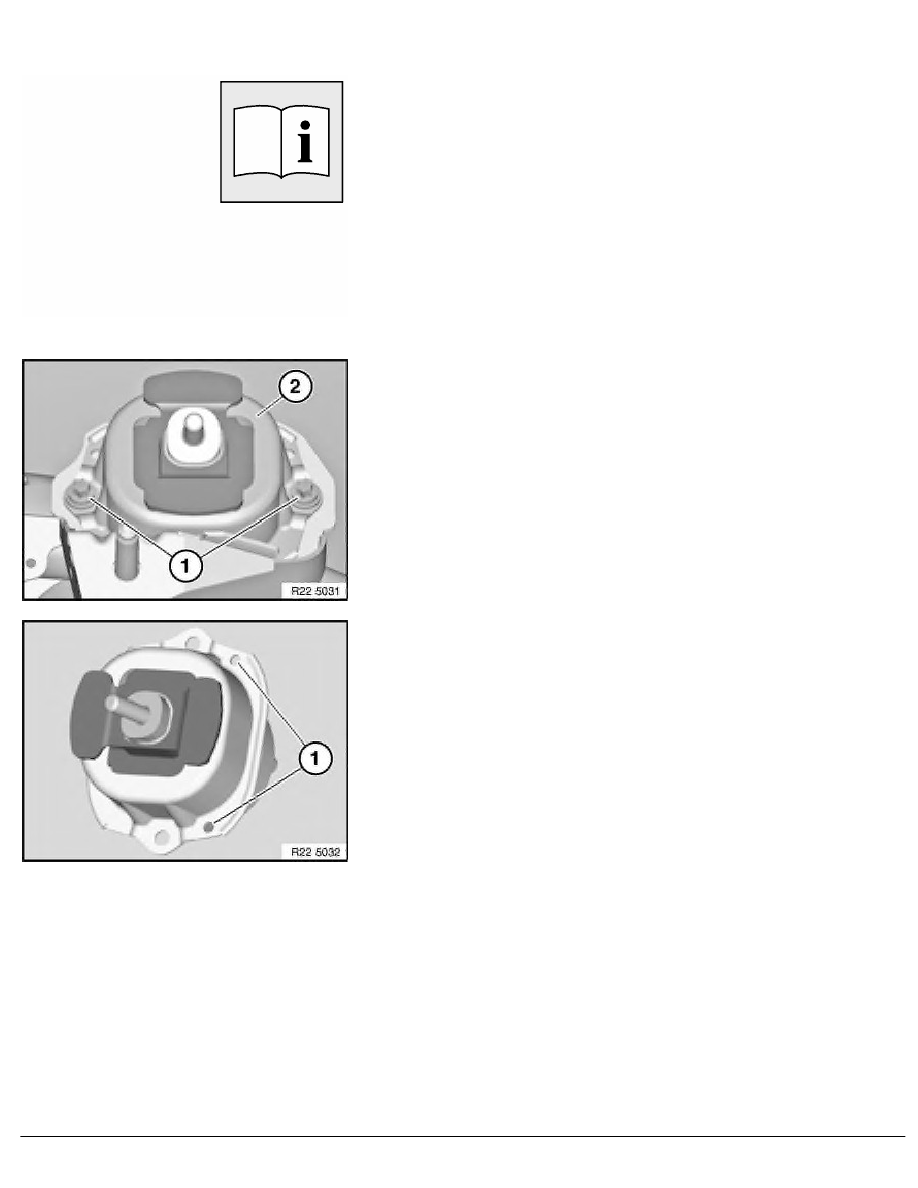

Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ
.
Installation:
Holes (1) in engine mount must point to middle of vehicle.
RA Replacing right engine mount (N62TU)
BMW AG - TIS
08.02.2013 01:48
Issue status (12/2007) Valid only until next DVD is issued
