X Series E70 X5 4.8i (N62TU) OFFRD
Important!

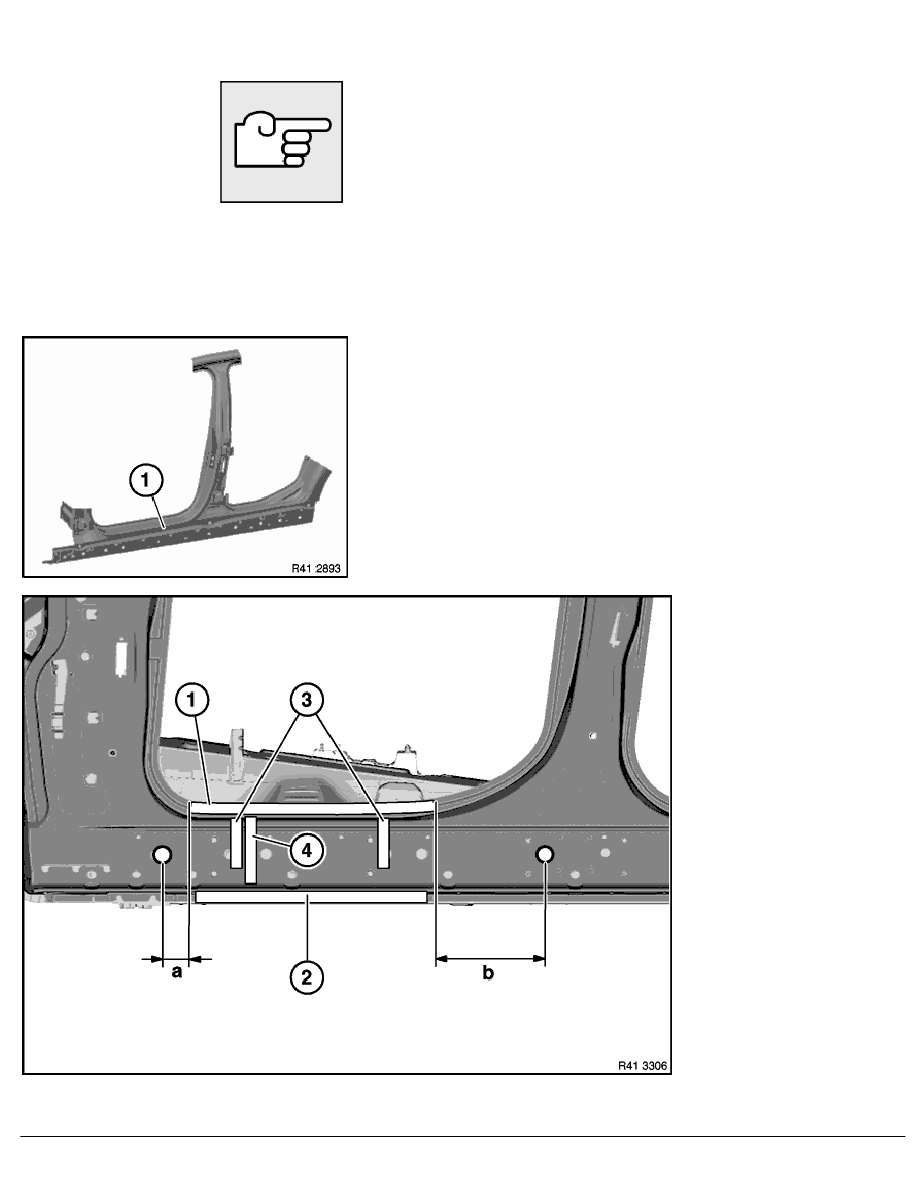

Cut outer plate only for following severance cuts.
Measurement a = approx. 50 mm behind hole dia. 25 mm.
Measurement b = approx. 250 mm before hole dia. 20 mm.
Open weld joints in areas (1) and (2).
Open adhesive bonds in areas (3). Open one welding spot in each case.
Installation:
Mark new part in accordance with severance cuts on vehicle and cut.
Apply window glass adhesive to cavity acoustic baffle (4).
Apply adhesive in areas (3). Welding spots omitted in areas (3).
Weld in reinforcing panels at all severance cuts.
Bond and rivet new part in area (2).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Service picture board - Aluminium and
steel/bonding and welding).
Double number of rivets with respect to welding spots in area (2).
RA Side member cover
