X Series E70 X5 4.8i (N62TU) OFFRD
51 16 202
Removing and installing/replacing front cup
holder

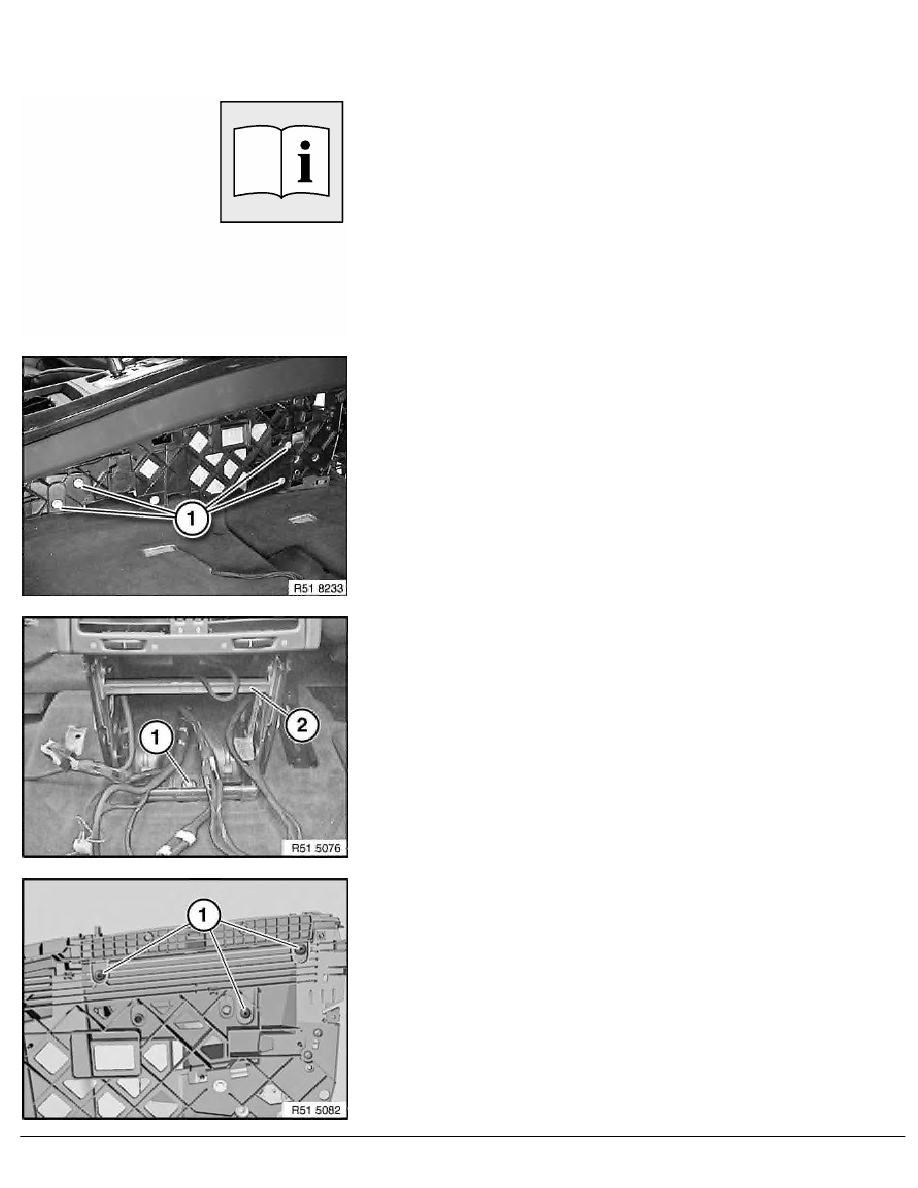

Necessary preliminary tasks:
•
Remove centre console.
•
Remove trim from centre console on left and right
•
Remove trim from cup holder at front
•
Remove rear storage box
Release screws (1) on left/right.
Release screw (1) and pull centre console (2) approx. 50 mm
towards rear.
Release screws (1).
RA Removing and installing/replacing front cup holder
