X Series E70 X5 4.8i (N62TU) OFFRD
64 11 ...

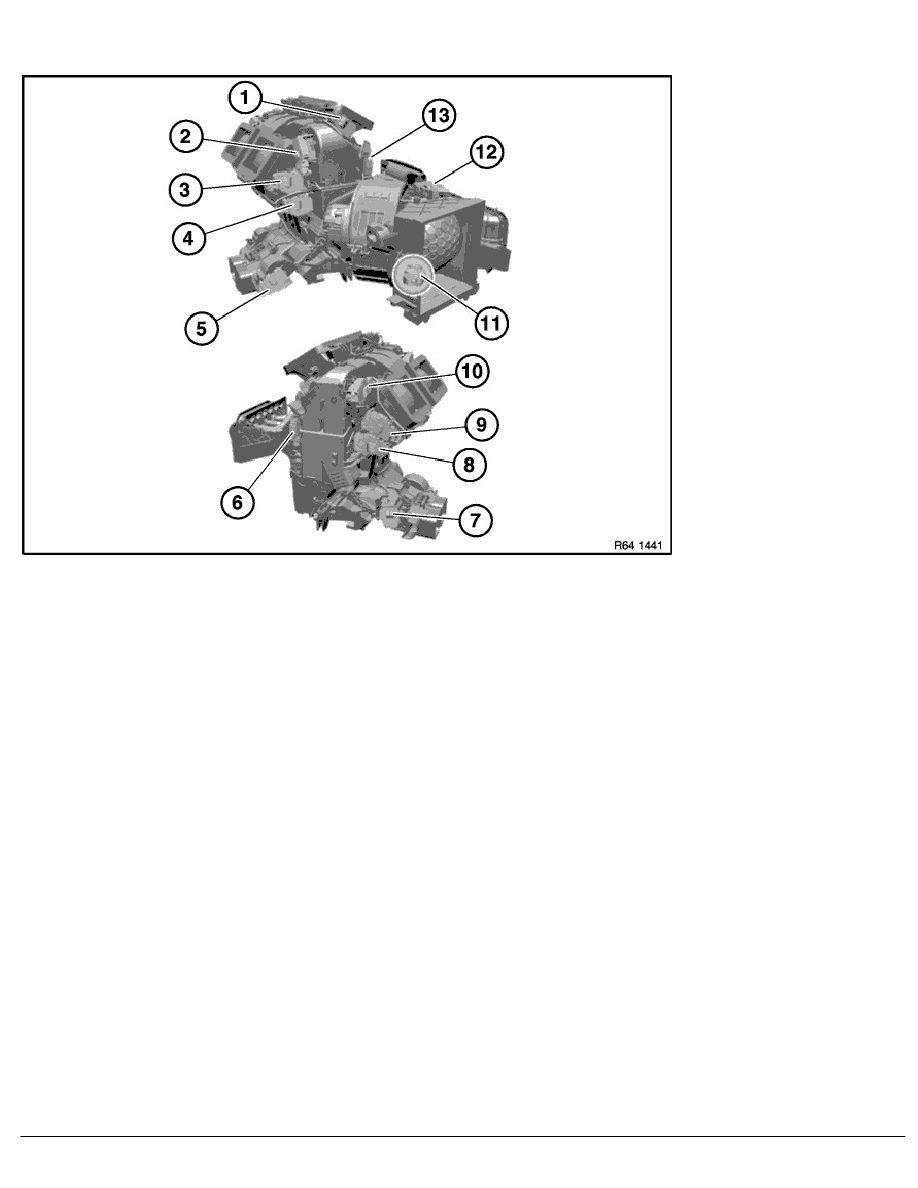

Overview of heater/air conditioner servomotors
1
Servomotor, defrosting
8
Servomotor, air blending, front left
2
Servomotor, footwell, rear cabin, right
9
Servomotor, ventilation, front left
3
Servomotor, ventilation, front right
10
Servomotor, footwell, rear cabin, left
4
Servomotor, stratification, front right
11
Servomotor, dynamic pressure compensation
5
Servomotor, air blending, rear right
12
Servomotor, fresh air/recirculated air
6
Servomotor, footwell, front left
13
Servomotor, footwell, front left
7
Servomotor, air blending, rear left
RA Overview of heater/air conditioner servomotors
